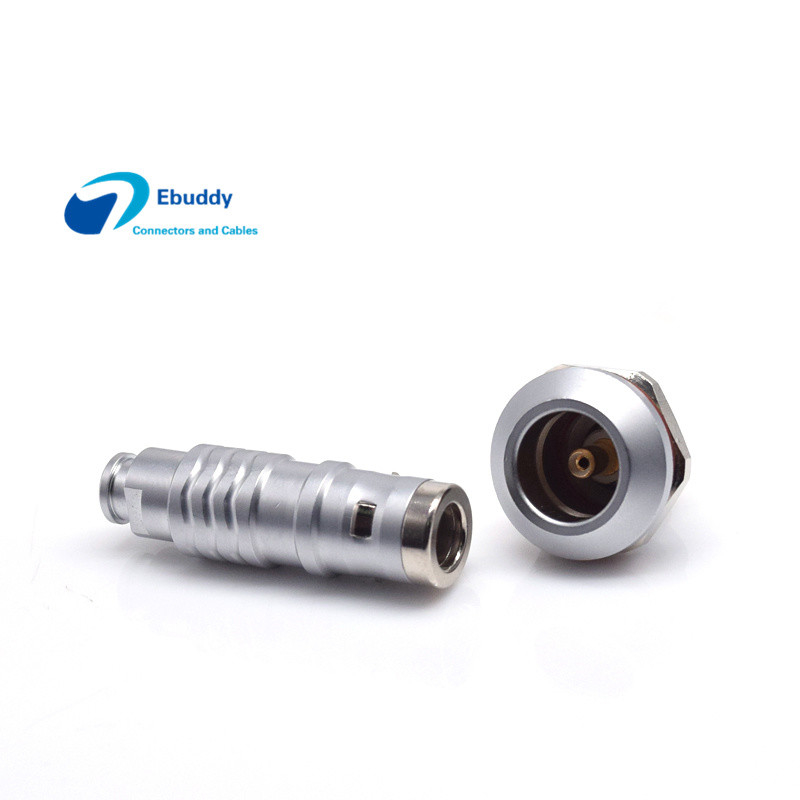

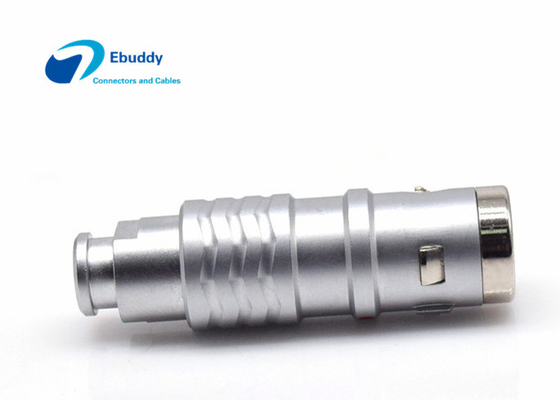

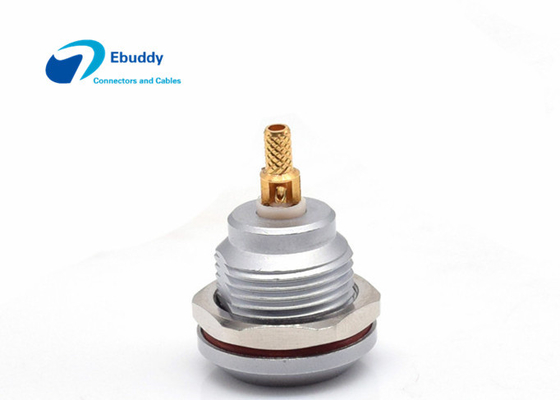

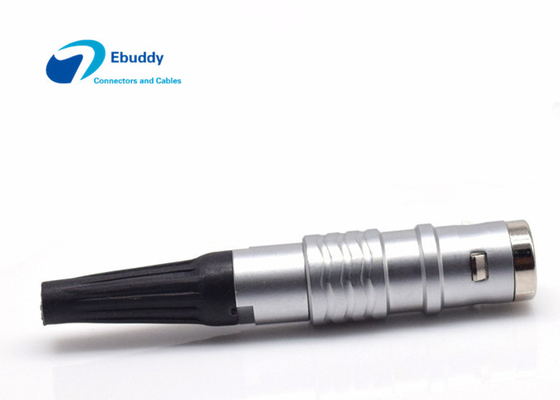

Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors

Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors

Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors
Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors
Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: FFA.0E.250
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Size: 0E Configuration: Brass (gold Plated)
Key: Circular, Male Shock Resistance: 100g.6ms
Cable Fixing: OD=2.6mm--10.0mm Lock Style: Push Pull Self-lock



Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors



Description:



  • Lemo replacement 0E waterproof circular connector
  • FFA.0E.250 coaxial 50ohm connectors
  • IP68 waterproof and Dust-proof
  • Good quality with best price , save you at least 50% cost than originals
  • Waterproof IP 68, dust-proof,
  • Sodering type for cable welding,  PCB printed circuit available
  • Cable collet diameter: 2.6mm-7.0mm
  • Cable custom assembly service is available, small to large quantity are ok
  • Warranty time: 1year



Cable clamp for your options:



  Collet No. Cable OD
0E Type coding Max Min
C 30 3.0 2.6
C 40 4.0 3.6
C 45 4.5 4.1
C 50 5.0 4.6





Corlorful Sleeve (Jacket)



Specification:



  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm

Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors 0



Custom service:



  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.



FAQ




1.How to choose connector you want?

(kindly tell us lemo connector model number or connector size and pins number you want)



2.How to pay us?

(We accept paypal,TT,westunion etc payment terms)



3.How we ship goods?

(By DHL,FEDEX,UPS etc pr you can choose your own express)



4.If i have a male or female lemo connector,could i use EBUDDY connector instead?

(Yes, our connectors are totally compatible with lemo connector)



5.How about delivery time of Ebuddy?

(Usually 5-8 days after received payment)



How to do plug cable assembly



Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors 1

Please confirm size and drawing as followings:



Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors 2

Lemo replacement 0E waterproof circular connector FFA.0E.250 coaxial 50ohm connectors 3
