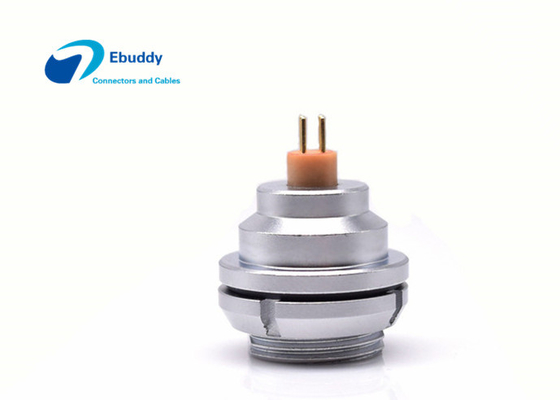

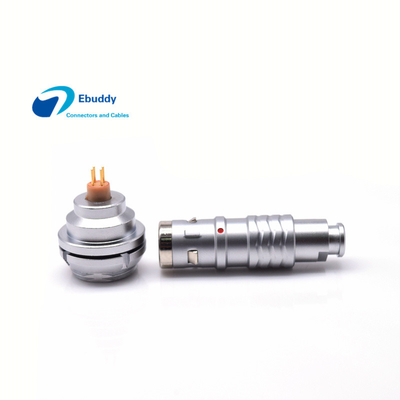

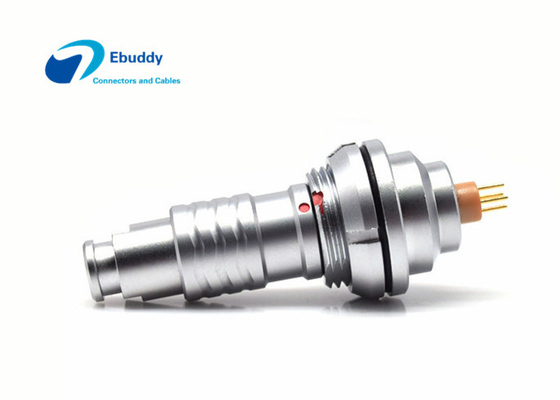

4pin PCB Panel Mount Receptacle Lemo K Series EEG Rear Panel Mounted Female Socket

Name: 4pin PCB Panel Mount Receptacle Lemo K Series EEG Rear Panel Mounted Female Socket
Brand: Ebuddy Technology Co.,Limited
SKU: EEG.0K.304
Price: 0.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EEG.0K.304
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Size:

Gender:

PCB Socket

Keying:

G Key

Series::

Lemo EEG

Configuration:

Brass (gold Plated)

IP Rate:

IP68

Packaging Details:

PP bag

Supply Ability:

50000pcs per month

Highlight:

4pin PCB Panel Mount Receptacle

EEG Lemo K Series

Panel Mounted Lemo K Series

Product Description

4-Pin PCB Panel Mount Receptacle - Lemo K Series EEG

This rear panel mounted female socket features a 4-pin PCB configuration designed for professional EEG applications and industrial equipment.

Product Features

Lemo K Series EEG Rear Panel Mounted Female Socket
Available in 0K, 1K, 2K, and 3K sizes
4-pin PCB female configuration with other pin options available
Custom cable assembly services available
Silver chrome finish with black or custom color options

Product Description

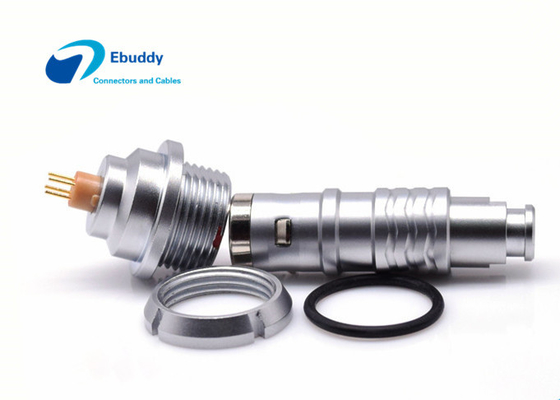

This 0K 4-pin PCB panel receptacle features internal assembly with nut fixation and keying options (G, A, B, or C) to prevent movement and mismating. Includes waterproof ring with IP66-IP68 rating when properly mated.

DIY Cable Assembly Process

Thread cable through sleeve collet nut in order, then solder cable wires to insulator one by one (note wire order carefully)
Insert split carrier to soldered insulator, ensuring carrier slot mates perfectly with insulator subassembly heave
Position collet on cable, ensuring collet heave mates with split insert carrier slot
Insert insulator subassembly, split insert carrier, and collet into outer shell in sequence
Tighten collet nut securely
Hitch sleeve to corresponding step of collet nut

Frequently Asked Questions

What about the quality of your products?

All products have UL certification and undergo strict testing by our QC department before shipment.

Can you offer samples to test before normal order?

We provide samples delivered within 3 working days. For expensive items, please contact us first.

How long is usually your delivery time?

Delivery time is typically within 10 days after payment confirmation.

Can you provide customization?

Please provide cable parameters and connector specifications. For professional equipment cables, provide weld definition.

Some connectors are available with different cables. Which cables shall I choose?

Always choose cables with larger diameter, as bigger diameter results in less attenuation.

How do you solve after sale service?

After receipt of goods, if unsatisfied or experiencing issues, contact us immediately for a quick and reasonable solution.
