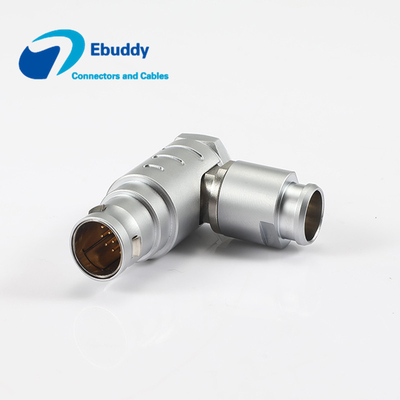

Lanyard Circular Cable Connectors Lemo FNG 0B 1B 2B 2Pin - 26Pin Male For Welding Cable

Name: Lanyard Circular Cable Connectors Lemo FNG 0B 1B 2B 2Pin - 26Pin Male For Welding Cable
Brand: Ebuddy Technology Co.,Limited
SKU: FNG.0B.302.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FNG.0B.302.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Name:

Circular Cable Connectors

Contact Type:

Solder

Housing Material:

Brass Chrome Plated

Shell Style:

FNG With Lanyard

IP Rating:

IP50

Rated Current:

10 Amps

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

Lanyard Circular Cable Connectors

Lemo FNG Circular Cable Connectors

Lemo FNG Welding Cable Connectors

Product Description

Lanyard Circular Cable Connectors Lemo FNG Series

Lemo-compatible FNG 0B, 1B, and 2B series circular cable connectors with 2-pin to 26-pin multi-pole male configurations designed for welding cable applications.

Product Specifications

Termination type: Male solder
Shell Style/Model: FN*: Straight plug with cable collet and lanyard release
Variant: Nut for fitting a bend relief
Configuration: 0B.302 : 2 Low Voltage
Rated Current: 10 Amps
Contact Type: Solder
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm² (AWG 22)
Max. Stranded Conductor: 0.34 mm² (AWG 22)
R (max): 4.8 mOhm
Vtest (contact-shell): 1050 V (AC), 1490 V (DC)
Vtest (contact-contact): 1300 V (AC), 1840 V (DC)
Switch Rating: 0

Cable Collet Size Specifications

Collet No.	Type	Coding	Max OD (mm)	Min OD (mm)
0B	D	32	3.0	2.1
0B	D	42	4.0	3.1
0B	D	52	5.0	4.1

Custom Cable Assembly Service

Our Quality Commitment:

Professional engineering evaluation of your specific needs
100% testing before shipping
Small quantity orders welcome
Overmold options available

Assembly Process

Before beginning cable assembly, we confirm the following specifications:

Cable application (power or signal transmission)
Cable length and outer diameter (OD)
Connector specifications for both ends
Wire connection diagram (provided by our engineers for approval)

Assembly begins only after diagram confirmation.

Dimensions and Technical Drawings

Quality Assurance & Advantages

100% quality guarantee with 30-day free warranty on defective parts
Extended 10-year warranty available upon request
Repair parts available for 10 years with EOL product notifications
Custom logo printing on over-molded connectors
Custom packaging solutions
Special features and services tailored to your requirements

Frequently Asked Questions

Are you a factory or trading company?

We are a factory specializing in circular cable connectors.

Do you accept sample orders?

Yes, we accept sample orders.

What's your warranty policy?

We offer a 2-year warranty. For goods defective due to non-personal reasons, we provide replacements.

What's your payment terms?

We accept T/T in advance, PayPal, or Alibaba Trade Assurance.

What's the lead time for mass orders?

Typically 20-35 days, depending on order quantity.
