10pin FGG EGG Lemo Cable Connector Push Pull Metal IP65 Receptacle And Socket

Name: 10pin FGG EGG Lemo Cable Connector Push Pull Metal IP65 Receptacle And Socket
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.1B.310/EGG.1B.310
Price: 0.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	FGG.1B.310/EGG.1B.310
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Model:

FGG/EGG.1B.310

Pin:

10pin

Shell Size:

Style:

Female Socket

Contact:

Solder

Max. Matings:

5000

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

EGG Lemo Cable Connector

Push Pull Lemo Cable Connector

IP65 Receptacle And Socket

Product Description

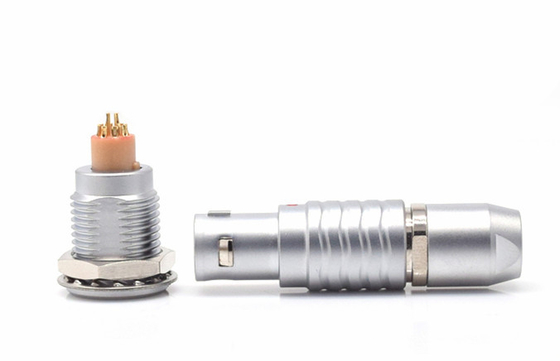

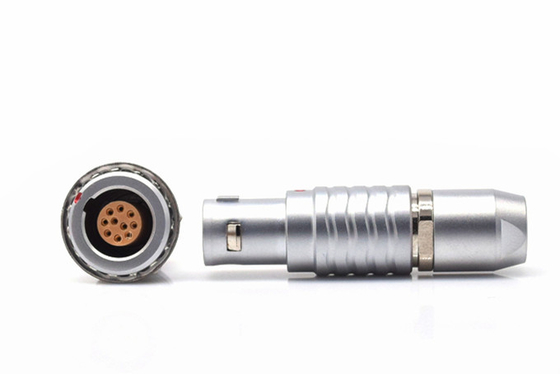

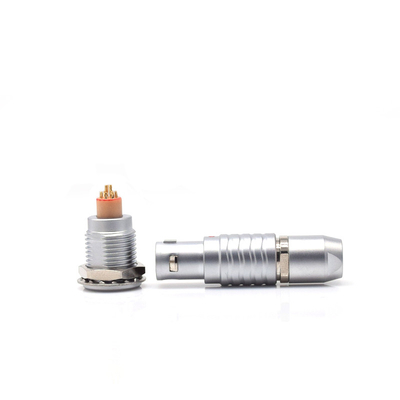

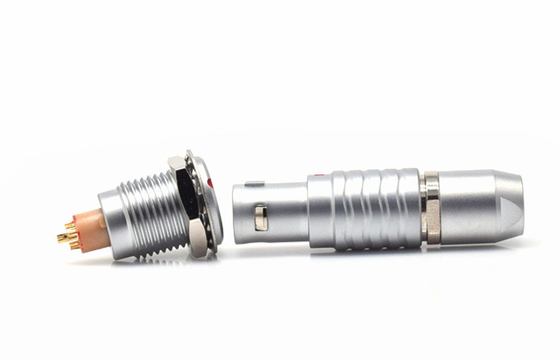

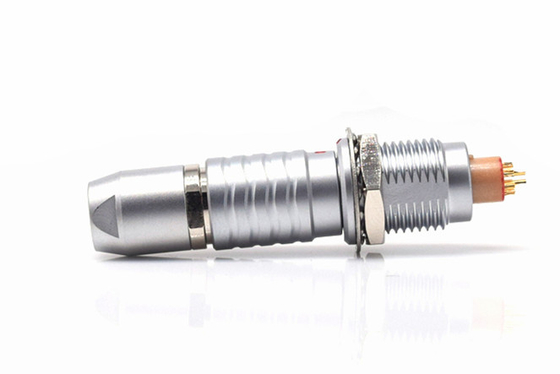

10pin FGG EGG Lemo Cable Connector Push Pull Metal IP65 Receptacle And Socket

High-quality 10-pin Lemo cable connectors featuring FGG male plug and EGG female socket configurations with robust metal construction and IP65 rating.

Key Features

Lemo FGG male plug and EGG female socket compatibility
Available in 0B, 1B, 2B, 3B, 4B shell sizes
2-32 pin configurations available
Shell endurance: 5000 mating cycles
Maximum humidity: ≤95% at 60°C / 140°F
IP Rating: IP65
Contact configuration: Brass (gold plated)
Housing material: Brass chrome plated
Temperature range: -20°C to +150°C

Technical Specifications

Shell Style/Model	FG*: Straight plug, cable collet
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Configuration	1B.310 : 10 Low Voltage
Rated Current	2.5 Amps
Contact Diameter	0.5 mm (0.02in)
R (max)	8.7 mOhm

Product Dimensions

Custom Services

Common model connectors stock: Ready-to-ship common models available within 3 days
Cable assembly service: Custom cable assembly according to your requirements
Technical support: Professional technical assistance for connector and cable applications
Cable assembly solutions: Custom solutions tailored to meet specific needs
Customized connector service: New mold development for unique connector requirements

Colorful Sleeve (Jacket) Options

Material: Polyurethane (PU)
Temperature range: -40°C to +80°C
Colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm - 8.2mm

Frequently Asked Questions

What about the quality of your products?

All of our products have UL certification and are strictly tested by our QC department before shipment.

Can you offer samples to test before normal order?

We are willing to provide samples. The sample can be delivered within 3 working days. For expensive items, please contact us first.

How long is usually your delivery time?

Our delivery time is usually within 10 days after your payment.

Can you provide customization?

You'd better provide parameters of the cable and the specification of the connector. If it's for professional equipment cable, please provide weld definition.

Some connectors are available with different cables. Which cables shall I choose?

Always choose the cable with the bigger diameter, because the bigger diameter results in less attenuation.

How do you solve after sale service?

After the receipt of goods, if you are not satisfied or having any other problems, please contact us as soon as possible, we will give you a quick and reasonable solution.
