FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins

Name: FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
Brand: Ebuddy Technology Co.,Limited
SKU: FGB.1B.304
Price: 0.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	FGB.1B.304
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Model:

FGB.1B.304

Pin:

4pin

Shell Size:

Style:

Male Plug

Keys:

Key B

Max. Matings:

5000

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

Male Plugs Lemo Cable Connectors

FGB 1B Lemo Cable Connectors

Keying B Lemo Connectors

Product Description

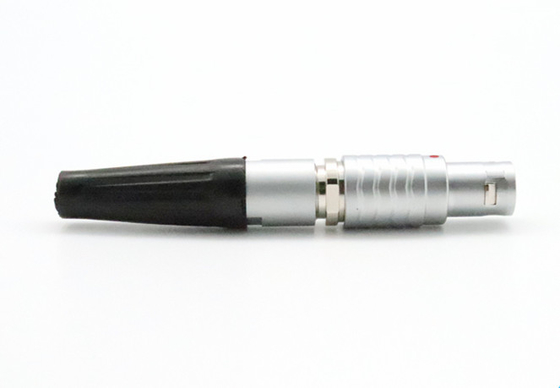

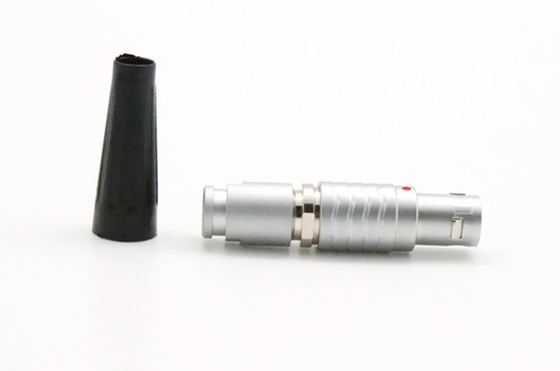

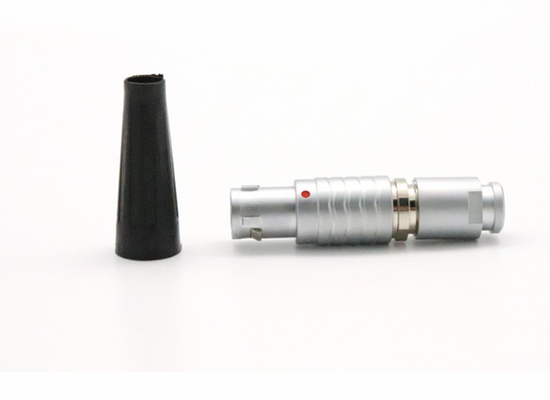

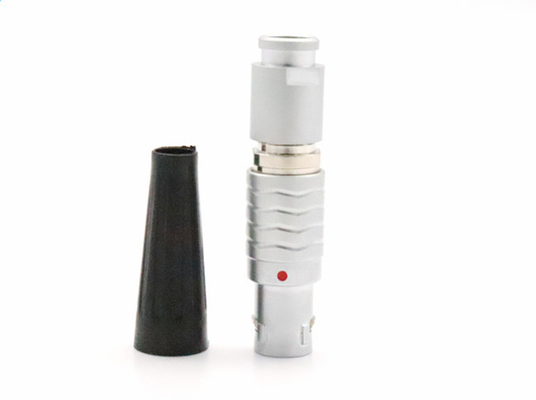

FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins

4pin FGB 1B Connectors Keying B 60degree Lemo Cable Connectors FGB.1B.304

Lemo FGB Cable Connector Features

Lemo FGA 2 keys compatible male plugs with female pins
0B, 1B, 2B configurations available
Endurance (Shell): 5000 mating cycles
Humidity (max): ≤95% [at 60°C / 140°F]
IP Rating: 50
Configuration: Brass (gold plated)
Housing Material: Brass chrome plated
Temperature range: -20°C to +150°C

Lemo FGA Connector Specifications

Shell Style/Model	FG*: Straight plug, cable collet
Keying	2 key (alpha=60, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

Performance Details

Insert	1B.304 : 4 Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Solder
Max. Matings	5000
Contact Dia	0.9 mm (0.035in)
Bucket Dia	0.8 mm (0.031in)
Max. Solid Conductor	0.34 mm² (AWG 22)
Max. Stranded Conductor	0.34 mm² (AWG 22)
R (max)	4.8mOhm
Vtest (AC)	1500 V
Rated Current	10A

Lemo FGB Connector Size Drawing

Lemo FGB Connector Custom Services

Common model connectors stock: For standard models, we maintain inventory and can ship within 3 days of order
Cable assembly service: Custom cable assembly according to your specifications
Technical support: Professional assistance for connector and cable application issues
Cable assembly solution supply: Custom cable assembly solutions tailored to your needs
Customized connector service: New mold development for connectors not available in our current product line

Ebuddy's Advantages

High quality, fully compatible with Lemo and Fischer connectors
Competitive pricing to help you succeed in the market
Fast delivery: 3-5 days for samples, 7-10 days for mass production
12-month warranty period
Custom cable assembly services available
Minimum order quantity: 1 piece
