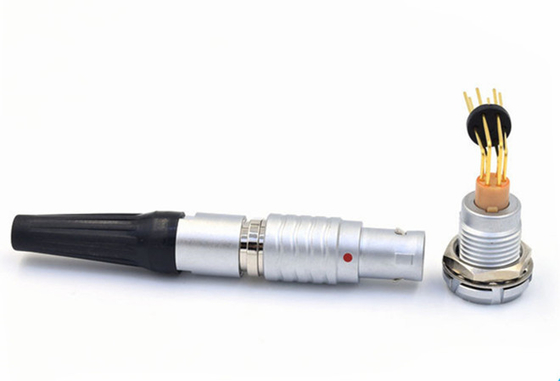

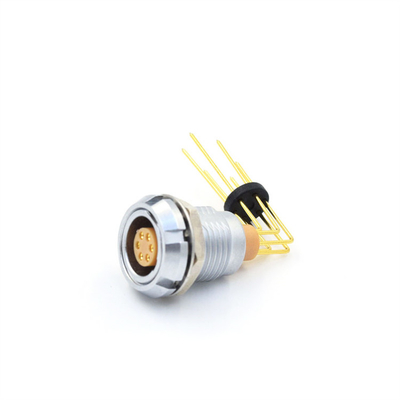

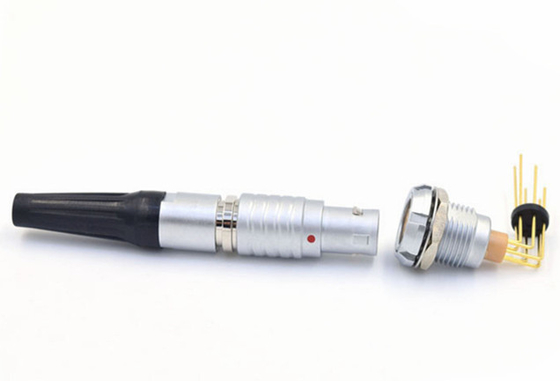

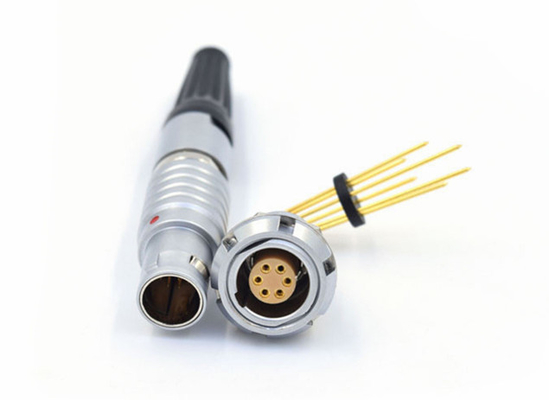

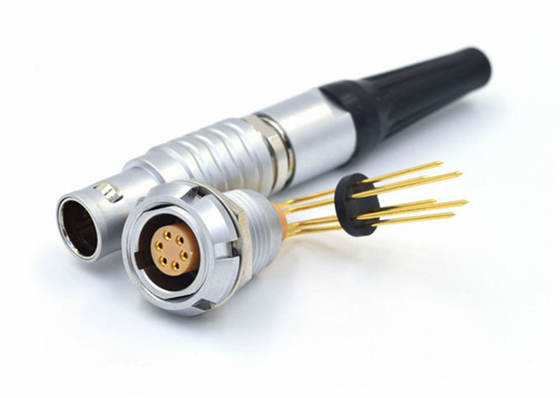

Lemo ECG Elbow PCB Socket Panel Mounted Female Receptacle ECG.1B.306.CLV

Name: Lemo ECG Elbow PCB Socket Panel Mounted Female Receptacle ECG.1B.306.CLV
Brand: Ebuddy Technology Co.,Limited
SKU: ECG.1B.306.CLV
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	ECG.1B.306.CLV
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Style:

Elbow PCB

Warranty Time:

1 Year

Keying:

0 Degree

Series::

Lemo ECG

Configuration:

Brass (gold Plated)

Weight:

11.4g

Packaging Details:

PP bag

Supply Ability:

50000pcs per month

Highlight:

Lemo ECG Elbow PCB Socket

0 degree Elbow PCB Socket

ECG Panel Mounted Female Receptacle

Product Description

Lemo ECG Elbow PCB Socket Panel Mounted Female Receptacle ECG.1B.306.CLV

Lemo ECG Right Angle Pins PCB Socket Real Panel Receptacle ECG.1B.306.CLV

Key Features

Lemo B Series ECG Rear Panel Mounted Female Socket
1B size configuration with 0B, 2B, 3B, 4B also available
6-pin PCB female contacts with other pin configurations available
Custom cable assembly service available
Silver chromed finish with black or custom color options

Product Description

Lemo 6-pin Elbow PCB Socket features two nuts for secure fixation and keying options (G, A, B, C) to prevent movement and mismating. Includes elbow 90-degree printed circuit pins and provides IP65 waterproof rating when mated with plug.

Technical Specifications

Shell Style/Model	EC*: Fixed receptacle with two nuts and elbow contacts for printed circuit (back panel mounting)
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Configuration	1B.306 : 6 Low Voltage
Contact Type	Print (elbow)
Contact Diameter	0.7 mm (0.028in)
R (max)	6.1 mOhm
Vtest (contact-shell)	1200 V (AC), 1700 V (DC)
Vtest (contact-contact)	1050 V (AC), 1490 V (DC)

Dimensions & Technical Drawing

Frequently Asked Questions

Q: Are you a factory or trade company?

A: We are manufacturer of connectors and cables with 10 years experience.

Q: Do you provide samples? Is it free?

A: We can provide a small number of free samples, but you need to pay the freight.

Q: What can you buy from us?

A: Push-pull connectors, cable assembly, bayonet connectors, military connectors, custom connectors.

Q: What about the lead time?

A: If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Otherwise, it depends on the quantity you need.

Q: What payment methods do you support?

A: We accept T/T, PayPal, Western Union
