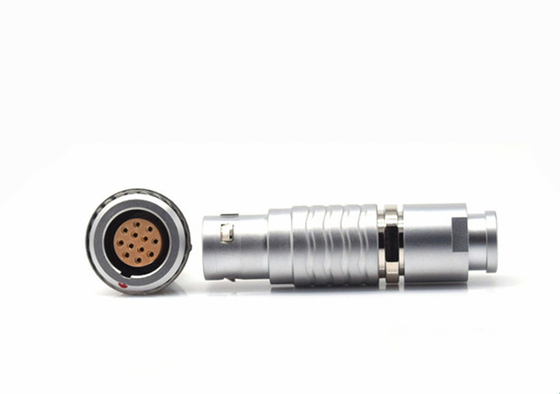

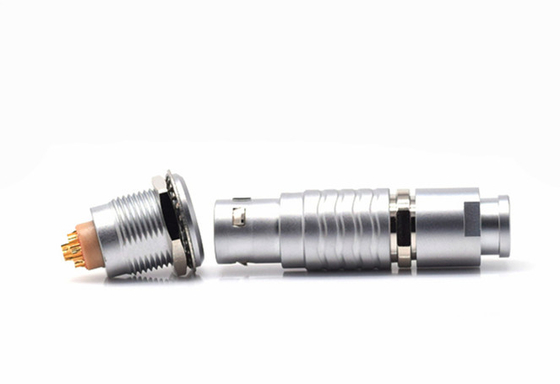

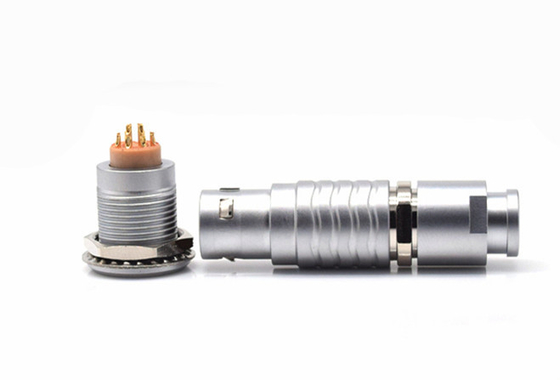

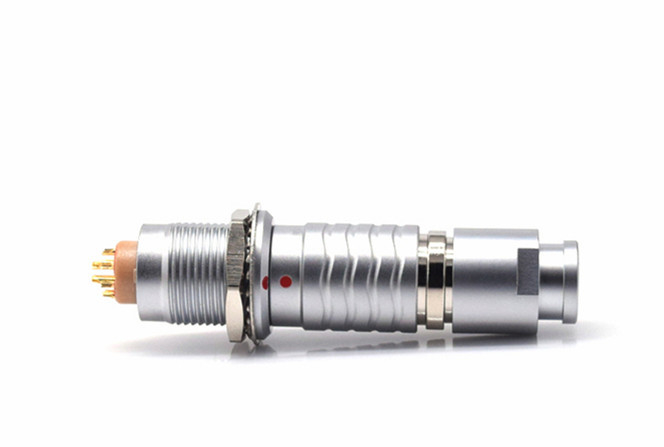

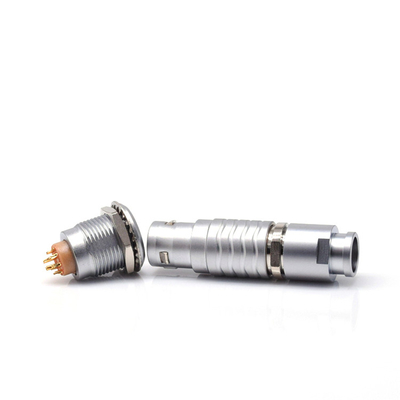

12pin Circular Cable Connectors Lemo Replacement 2B Size M15 Connectors

Name: 12pin Circular Cable Connectors Lemo Replacement 2B Size M15 Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.2B.312.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.2B.312.CLAD
MOQ:	1
Price:	negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Size:

FGG, 2B

Housing Material:

Brass (chrome Plated) Shell

Pin No:

12pins

Max. Matings: 5000:

5000

Contact Type:

Solder

Shock Resistance:

100g.6ms

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

12pin Circular Cable Connectors

M15 Circular Cable Connectors

Lemo Replacement M15 Connectors

Product Description

12-Pin Circular Cable Connectors - Lemo Replacement 2B Size M15

High-quality 12-pin circular cable connectors designed as direct replacements for Lemo connectors, offering reliable performance and cost-effective solutions for industrial applications.

Product Features

Fully compatible with Lemo connectors with 5000+ mating cycle endurance
Push-pull self-locking mechanism for secure connections and easy mating/unmating
Available in multiple sizes: 00B, 0B, 1B, 2B, 3B, 4B
Soldering type and PCB printed circuit options available
1-key fixing G with 0-degree orientation
IP50 dust-proof rating for industrial environments
Custom cable and connector configurations available

Technical Specifications

Specification	Details
Shell Style/Model	FG*: Straight plug, cable collet
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration	2B.312 : 12 Low Voltage
Rated Current	7A
Contact Type	Solder
R (max)	6.1 mOhm
Vtest (contact-shell)	1350 V (AC), 1910 V (DC)
Endurance (Shell)	5000 cycles
Temperature Range	-55°C / +250°C

Why Choose Ebuddy Connectors

Complete compatibility with Lemo/ODU/Fischer connectors at lower cost
Certified to ROHS, ISO9001:2008, and UL standards
Short delivery time: 7-10 days typically
Factory production capacity: 5000 sets per week
Samples available for quality verification

Product Dimensions and Drawing

Advantages of Circular Cable Connectors

Superior performance with standard pure copper four-stranded double wire and crystal head
Easy installation without welding or special tools - standard crystal heads plug directly
IP67 waterproof and dustproof rating for harsh environments
Threaded connection ensures safety, reliability, and resistance to impact, vibration, and tension
Anti-electromagnetic interference protection
No signal attenuation - maintains original wiring structure integrity
Compact design saves installation space
Converts standard Ethernet connectors to rugged, fast-connect solutions

Frequently Asked Questions

Are you a factory or trading company?

We are a factory specializing in circular cable connectors manufacturing.

Do you accept sample orders?

Yes, we accept sample orders for quality verification.

What's your warranty policy?

We offer a 2-year warranty. For defects not caused by personal misuse, we provide replacements.

What's your payment terms?

We accept T/T in advance, PayPal, or Alibaba Trade Assurance.

What's the lead time for mass orders?

Typically 20-35 days, depending on order quantity.
