Lemo K Serials Waterproof Circular Connector IP68 0K / 1K / 2K 2 - 32pin Male And Female Connectors

Name: Lemo K Serials Waterproof Circular Connector IP68 0K / 1K / 2K 2 - 32pin Male And Female Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.0K.302.CLAC
Price: 9.30 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.0K.302.CLAC
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

IP Rating:

IP68

Configuration:

Brass (gold Plated)

Max. Matings:

5000

Shock Resistance:

100g.6ms

Cable Fixing:

OD=2.6mm--10.0mm

Salt Spray Corossion Test:

> 48hrs

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

waterproof panel mount connector

waterproof cable connector

Lemo K Serials Waterproof Circular Connector

Product Description

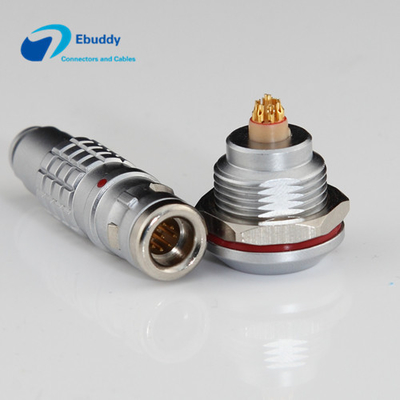

Lemo K serials waterproof IP68 0K/1K/2K 2-32pin male and female connectors

Description:

Multi core 2-32pin waterproof connector
Size: 0K/1K/2K
Material: Brass chrome plated(Housing),Brass gold plated (Configuration)
Factory price with capacity 10000pcs per month
Push pull self-locking with 5000 mating cycles
Waterproof IP 68, dust-proof,
Sodering type for cable welding, PCB printed circuit available
Cable collet diameter: 2.6mm-7.0mm
Cable & Connector custom is welcomed!
Warranty time: 1year

Cable clamp for your options:

0K:

C30: OD=2.6---3.0mm

C40: OD=3.6---4.0mm

C45: OD=4.1---4.5mm

C50: OD=4.6---5.0mm

1K:

C45: OD=4.1---4.5mm

C50: OD=4.6---5.0mm

C55: OD=5.0---5.5mm

C60: OD=5.6---6.0mm

K70: OD=6.6---7.0mm

2K:

C65: OD=6.1---6.5mm

C70: OD=6.6---7.0mm

C85: OD=8.1---8.5mm

C11: OD=10.1---10.5mm

Application :

Medical
Defense Security
Instrumentation
Transportation
Industry
Energy
Broadcast
Audio/video

Why you need buy compatible connector?

100% compatible lemo connector,
Help you save at least 30% cost
Cable assembly offer,help you save production time.

Corlorful Sleeve (Jacket)

Specification:

Material: Polyurethane material(PU)
Temperature range: -40°--- +80°
Color: Black, Red, Blue, White, Yellow, Green
Size: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm—8.2mm

Lemo K Serials Waterproof Circular Connector IP68 0K / 1K / 2K 2 - 32pin Male And Female Connectors 0

Please confirm size and drawing as followings:

Lemo K Serials Waterproof Circular Connector IP68 0K / 1K / 2K 2 - 32pin Male And Female Connectors 2
