4pin Redel Plastic Medical Connector Lemo Alternative Push Pull Circular Male And Female Connectors

Name: 4pin Redel Plastic Medical Connector Lemo Alternative Push Pull Circular Male And Female Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: PAG.M0.4GL.AC
Price: 22.30 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	PAG.M0.4GL.AC
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Size:

Serials:

Redel P

Insulator:

P:PPS

Contact Type:

Solder

Configuration:

Brass (gold Plated)

Color:

Red,Green,Gray,yellow,Black

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

circular plastic connectors

lemo redel connectors

Lemo Alternative Push Pull Circular Connectors

Product Description

4-Pin Redel Plastic Medical Connector

Lemo alternative push-pull circular male and female connectors designed for medical applications.

Technical Specifications

Shell Style/Model: PA* Straight plug with cable collet
Keying: 1 key (alpha=0; Plug: male contact; Receptacle: female contact)
Configuration: 1P.M04 : 4 Low Voltage
Rated Current: 8 Amps
Contact Type: Solder
Maximum Matings: 2000
Contact Diameter: 0.9 mm (0.035in)
Bucket Diameter: 0.8 mm (0.031in)
Maximum Solid Conductor: 0.34 mm² (AWG 22)
Maximum Stranded Conductor: 0.34 mm² (AWG 22)
R (max): 4.5 mOhm
Test voltage (kV rms) Contact-contact: 1.2
Air clearance min. (mm) or Creepage distance min. (mm): 1.2

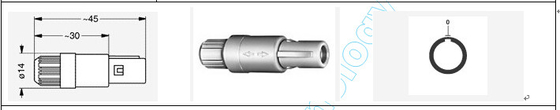

Dimensions and Drawings

Please confirm size and drawing specifications:

Cable Collet Options

Collet No.	Cable OD Max	Cable OD Min
42	4.5	3.5
52	5.5	4.5
62	6.5	5.5

Custom Cable Assembly Service

Our Cable Assembly Guarantee:

Professional engineering evaluation of your requirements
100% testing before shipping
Small quantity orders welcome
Overmold options available

Assembly Process Requirements

Before cable assembly, we require the following information:

Cable application (power or signal transmission)
Cable length and outer diameter
Connector specifications for both ends
Wire connection configuration

Our engineering team will create a detailed connection diagram including all cable specifications for your approval.

Benefits of Our Compatible Connectors

100% compatible with Lemo connectors
Save at least 30% on costs
Cable assembly services reduce production time

Why Choose Ebuddy

Complete compatibility with Lemo/ODU/Fischer connectors at lower cost
ROHS, ISO9001:2008, and UL certified
Short delivery time: 7-10 days typically
Factory capacity: 5,000 sets per week
Sample evaluation available

Contact Information

Welcome inquiries by email or Skype:

Email: vicky@ebuddy-diycable.com

Skype: Ebuddy Cables

We respond within 12 hours!
