Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly

Name: Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly
Brand: Ebuddy Technology Co.,Limited
SKU: HGG.0B.303.CLAD
Price: 0.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	HGG.0B.303.CLAD
MOQ:	1
Price:	negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Application:

Power Supply

Keying:

1 Key (alpha=0)

Housing Material:

Brass (chrome Plated) Shell

Rated Current:

8 A

IP Rating:

IP50

R (max):

4.8 MOhm

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

7 pin cable connectors

soldering cable connectors

Lemo Alternative Male Cable Connector

Product Description

Lemo alternative FGG 0B 3pin male cable connector for DIY cable assembly

Technical Specifications

Series: FGG*: Cable welding connector
Keying: G key fixing, 0°
Insulator: PPS
Housing Material:Brass chrome plated

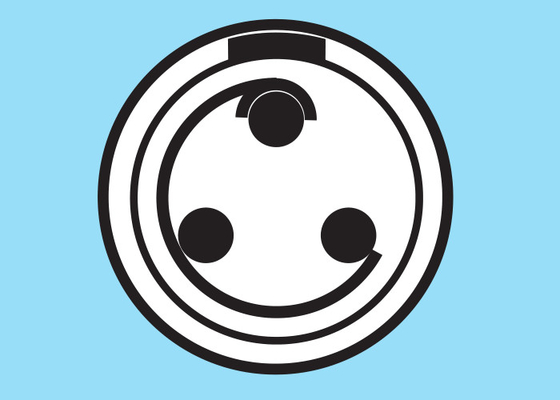

Insert: 0B.303 : 3 Low Voltage
Configuration:Brass (gold plated)
Insulator:P:PPS
Contact Dia:0.9 mm
Bucket Dia:0.8 mm
Max. Solid Conductor:0.34 mm^2 (AWG 22)
Max. Stranded Conductor:0.34 mm^2 (AWG 22)
Specifications: Low Voltage
Vtest (AC):2000 V
Rated Current: 8A

Other Technical specifications:

OTHER CHARACTERISTICS
Endurance (Shell)	5000 mating cycles
Temp (min)	-20 deg C
Temp (max)	+150 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
IP Rating	50

Why you need buy compatible connector?

1. 100% compatible lemo connector,

2. Help you save at least 30% cost

3. Cable assembly offer,help you save production time.

With Sleeve or without:

When you choose the plug, there always 2 style for your options : with sleeve or without. To make sure you have done a right chioce, please let me show you difference as followings:

Difference:

1. Model number :

Without sleeve: FGG.0B.304.CLAD52
With sleevr: FGG.0B.304.CLAD52Z, Z stand by sleeve

2. Advantage :

With sleeve: the sleeve can relieve some damage to the cable when working
Without sleeve: this structure can short both connectors length, for example, if you only need do 6cm—10cm long cable, you need use this style, it can be more flexible and easier to do cable assembly.

3. Structure : only a little difference in connector’s tail, no big function difference please see attached pictures:

without sleeve style:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly 0

With sleeve style:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly 1

Sleeve color options:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly 2

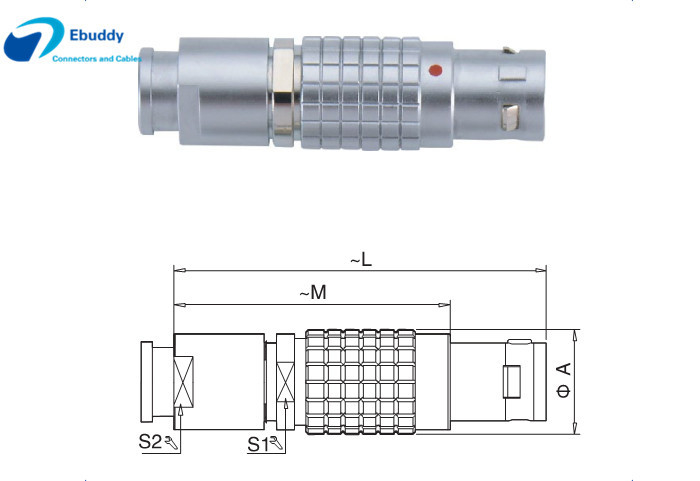

Size and Drawing:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly 3

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly 4
