Miniature Circular Connectors Lemo Compatible 9 Pin FGG 0B Size , Circular Cable Connectors

Name: Miniature Circular Connectors Lemo Compatible 9 Pin FGG 0B Size , Circular Cable Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: HGG.0B.309.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	HGG.0B.309.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

FGG*: Straight Plug

Housing Material:

Brass (chrome Plated) Shell

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Configuration:

Brass (gold Plated)

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

circular din connector

circular power connector

Miniature Circular Connectors Lemo Compatible

Product Description

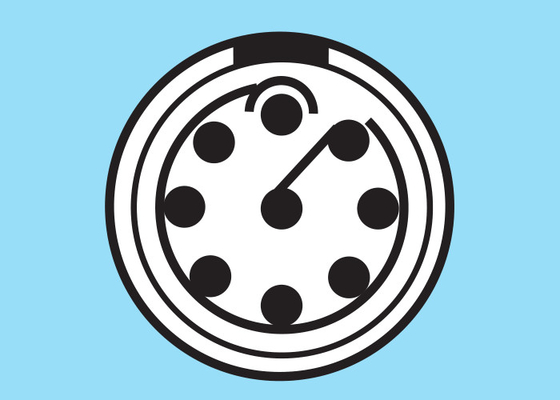

Miniature Circular Connectors Lemo Compatible 9 Pin FGG 0B Size

High-quality miniature circular cable connectors offering full compatibility with Lemo connectors, designed for reliable performance and easy installation.

Product Specifications

9-pin circular cable connector with full Lemo compatibility
Premium quality construction for easy locking and mating
Available pin configurations: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, and 19 pins
Connection types: Soldering type and PCB printed circuit options
Gender options: Male plug, female plug, female socket, male socket
Cable collet diameter range: 2.6mm to 7.0mm
Custom cable and connector solutions available upon request

Cable Collet Size Options

Collet No.	Type	Coding	Max OD (mm)	Min OD (mm)
1B	M	31	2.6	2.6
D	42	4.0	3.1	3.1
D	52	5.0	4.1	4.1
D	62	6.0	5.1	5.1
D	72	7.0	6.1	6.1

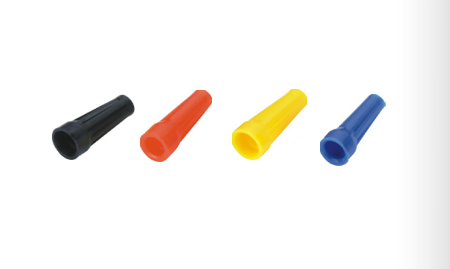

Colorful Sleeve (Jacket) Specifications

Material: Polyurethane (PU)
Temperature range: -40°C to +80°C
Available colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm to 8.2mm

Why Choose Ebuddy Connectors

Fully compatible with Lemo/ODU/Fischer connectors at lower cost
Certified to ROHS, ISO9001:2008, and UL standards
Short delivery time: 7-10 days typically
Factory production capacity: 5,000 sets per week
Samples available for quality verification

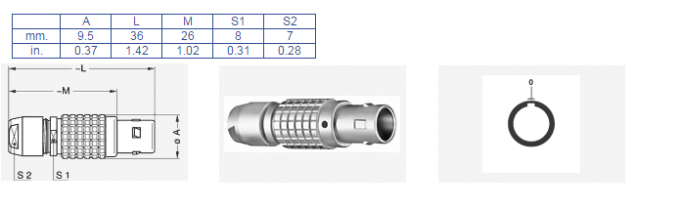

Product Dimensions and Technical Drawings

Available Color Options
