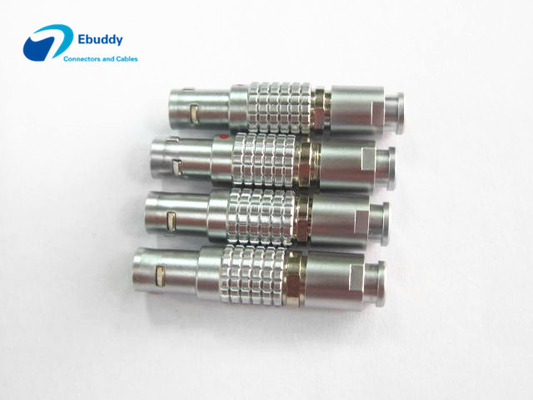

Miniature Circular Connectors Lemo Alternative Male Connector With 7pin 0B Size FGG.0B.307

Name: Miniature Circular Connectors Lemo Alternative Male Connector With 7pin 0B Size FGG.0B.307
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.0B.307.CLAD42Z
Price: 0.5 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.0B.307.CLAD42Z
MOQ:	1
Price:	0.5USD
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Shell Style:

Straight Plug With Cable Collet

Shock Resistance:

100g.6ms

Housing Material:

Brass (chrome Plated) Shell

Temp (min):

-20 Deg C

Temp (max):

+150 Deg C

Humidity (max):

<=95% [at 60 Deg C / 140 F]

Max. Matings:

5000

Configuration:

Brass (gold Plated)

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

circular electrical connectors

circular power connector

Lemo Alternative Miniature Circular Connectors

Product Description

Miniature Circular Connectors Lemo Alternative Male Connector With 7pin 0B Size FGG.0B.307

Miniature circular push pull Lemo alternative male connector with 7pin 0B size FGG.0B.307

Technical Specifications

Series	FGG*: Straight plug
Keying	1key fixing, 0°
Configuration	Brass (gold plated)
Insert	1B.307 : 7 Low Voltage
Contact Type	Solder
Insulator	P:PPS
R (max)	6.1 mOhm
Vtest (AC)	1200 V
Rated Current	5 A
Endurance (Shell)	5000 mating cycles
Temp (min)	-20 deg C
IP Rating	50
Shock resistance	100g.6ms
Salt spray corrosion test	> 48hrs
Resistance to vibration	10-20000Hz, 15g

Cable Collet Size Options

M31: OD=2.6---3mm
D42: OD=3.1---4.0mm
D52: OD=4.1---5.0mm
D62: OD=5.1---6.0mm
D72: OD=6.1---7.0mm

Performance Details

Insert	1B.303 : 7 Low Voltage
Specifications	Low Voltage
Contact Type	Solder
Max. Matings	5000
Contact Dia	0.5 mm
Bucket Dia	0.45mm
Max. Solid Conductor	0.09 mm² (AWG 28)
Max. Stranded Conductor	0.09 mm² (AWG 28)
R (max)	8.7mOhm
Vtest (AC)	2000 V
Rated Current	2.5 A

Benefits of Compatible Connectors

100% compatible with Lemo connectors
Save at least 30% on costs
Cable assembly service available to save production time

Frequently Asked Questions

How to choose the right connector? - Provide Lemo connector model number or specify connector size and pin count

Payment methods? - PayPal, TT, Western Union, and other payment terms accepted

Shipping options? - DHL, FedEx, UPS, or your preferred express carrier

Compatibility with existing Lemo connectors? - Yes, our connectors are fully compatible with Lemo connectors

Delivery time? - Typically 5-8 days after payment receipt

Custom Services

Common model connectors stock: Ready-to-ship common models available within 3 days
Cable assembly service: Custom cable assembly according to your requirements
Technical support: Professional assistance for connector and cable working issues
Cable assembly solutions: Custom solutions to meet your specific needs
Customized connector service: New mold development for unique requirements

Size and Drawing
