Circular Cable Connector Lemo FGG 1b Size 4pin Male Plug FGG.1B.304

1
MOQ
Negotiable
Price
Circular Cable Connector Lemo FGG 1b Size 4pin Male Plug FGG.1B.304
Features Gallery Product Description Request A Quote
Features
Specifications
Shell Style: Straight Plug With Cable Collet
Keying: 1 Key (alpha=0)
Housing Material: Brass (chrome Plated) Shell
Rated Current: 10A
Max. Matings: 5000: 5000
IP Rating: IP50
R (max): 4.8 MOhm
Configuration: Brass (gold Plated)
High Light:

circular din connector

,

circular power connector

,

Lemo 4pin Circular Cable Connector

Basic Infomation
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.1B.304.CLAD
Payment & Shipping Terms
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Product Description



Circular cable connector Lemo push pull cable connector FGG 1b size 4pin male plug FGG.1B.304



Description:



  • 4pin IP50 Dust-proof male cable connector
  • 100% totally compatible with originals
  • Low Voltage
  • Application: Push pull self-locking, widely use in electroninc, instruments, video/audio,medical equipment on signal connection
  • Multi pins from 2pin to 16pins
  • Sodering type and PCB printed circuit available
  • Cable collet diameter: 2.6mm-7.0mm
  • Small to large quantity cable assembly accepted



Cable collet size for your option:



M31: OD=2.6---3mm

D42: OD=3.1---4.0mm

D52: OD=4.1---5.0mm

D62: OD=5.1---6.0mm

D72: OD=6.1---7.0mm





Technical specifications:



OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50


Why you need buy compatible connector?



  • 100% compatible lemo connector,
  •  Help you save at least 30% cost
  • Cable assembly offer,help you save production time.



FAQ:



1.How to choose connector you want?

(kindly tell us lemo connector model number or connector size and pins number you want)



2.How to pay us?

(We accept paypal,TT,westunion etc payment terms)



3.How we ship goods?

(By DHL,FEDEX,UPS etc pr you can choose your own express)



4.If i have a male or female lemo connector,could i use EBUDDY connector instead?

(Yes, our connectors are totally compatible with lemo connector)



5.How about delivery time of Ebuddy?

(Usually 5-8 days after received payment)





Corlorful Sleeve (Jacket):



Specification:

  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm

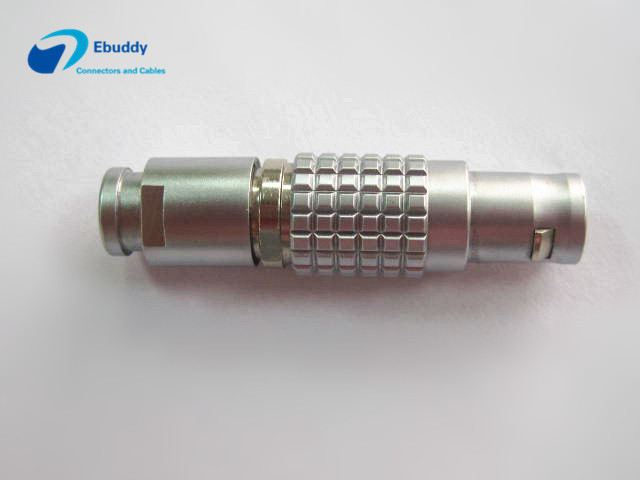

Circular Cable Connector Lemo FGG 1b Size 4pin Male Plug FGG.1B.304 0

FGG 1B 4pin cable connector size and drawing:



Circular Cable Connector Lemo FGG 1b Size 4pin Male Plug FGG.1B.304 1



Circular Cable Connector Lemo FGG 1b Size 4pin Male Plug FGG.1B.304 2
