8pin Push Pull Circular Cable Connectors Lemo Alternative FGG 1B Size Male Plug

1
MOQ
negotiable
Price

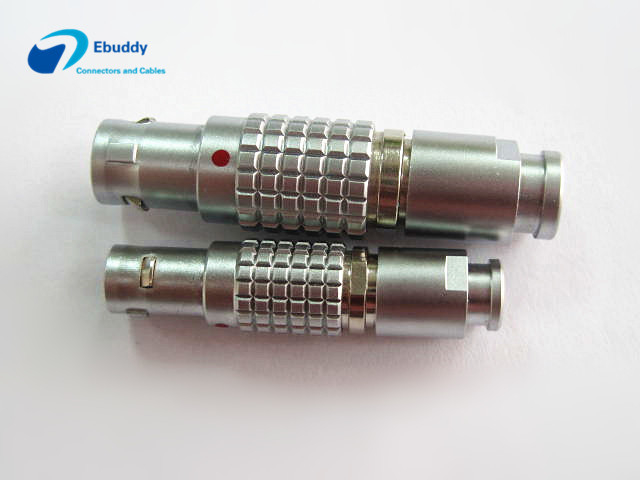

8pin Push Pull Circular Cable Connectors Lemo Alternative FGG 1B Size Male Plug
Features Gallery Product Description Request A Quote
Features
Specifications
Shell Style: FGG Straight Plug With Cable Collet
Keying: 1 Key (alpha=0)
Housing Material: Brass (chrome Plated) Shell
Rated Current: 5A
Contact Dia: 0.9 Mm
IP Rating: IP50
R (max): 6.1 MOhm
Locking Style: Push Pull Self-locking
High Light:

circular din connector

,

circular electrical connectors

,

8pin Push Pull Circular Cable Connectors

Basic Infomation
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.1B.308.CLAD
Payment & Shipping Terms
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Product Description



8pin push pull low Voltage connector circular cable connector FGG 1B size male plug



Technical Specifications:



  • Series: FGG*: Straight plug
  • Keying: 1key fixing, 0°
  • Housing Material:Brass chrome plated
  • Insert:1B.308 : 8 Low Voltage
  • Configuration:Brass (gold plated)
  • Insulator:P:PPS
  • Specifications:Low Voltage
  • R (max):6.1 mOhm
  • Vtest (AC):1200 V
  • Rated Current:5 A
  • Endurance (Shell):5000 mating cycles
  • Temp (min):-20 deg C
  • Temp (max):+150 deg C
  • Humidity (max):<=95% [at 60 deg C / 140 F]
  • IP Rating:50
  • Shock resistance: 100g.6ms
  • Salt spray corossion test : > 48hrs
  • Resiatance to vibration: 10-20000Hz, 15g



Cable collet size for your option:



  Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1




Why you need buy compatible connector:
  • 100% compatible lemo connector,
  • Help you save at least 30% cost
  • Cable assembly offer,help you save production time.



Why choose Ebuddy:
  • Complete compatible with lemo/odu/fischer/hirose connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first



Waterproof IP rating choose:



Our connector mainly have 2 waterproof IP rating: IP50 and IP68, if you need IP50 products, you can choose Lemo B serials, if you higher IP68, Lemo K serials and S serials should be your choice.



For the IP rating, please let me explain for you as followings:



IP50:

  • Dust-prrof: Completely prevent foreign invasion, although not completely prevent the intrusion of dust, but the amount of dust intrusion will not affect the normal operation of electrical appliances
  • Waterproof: No special protection against water or moisture

IP68:

  • Dust-prrof: Completely prevent foreign objects and dust intrusion
  • Waterproof: Can be completely immersed in the water structure, the experimental conditions determined by the producers and users

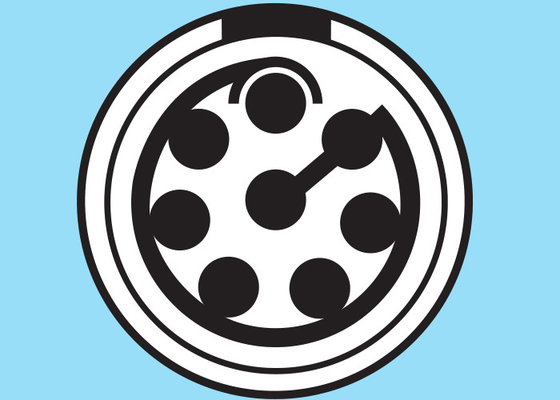

Size and Drawing

8pin Push Pull Circular Cable Connectors Lemo Alternative FGG 1B Size Male Plug 0





Our workshop for cable testing:



8pin Push Pull Circular Cable Connectors Lemo Alternative FGG 1B Size Male Plug 1



8pin Push Pull Circular Cable Connectors Lemo Alternative FGG 1B Size Male Plug 2
