16 Pin Circular Cable Connector Lemo FGG.1B.316 For Red Evf Cable

1
MOQ
negotiable
Price
16 Pin Circular Cable Connector Lemo FGG.1B.316 For Red Evf Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Series: FGG*: Straight Plug
Keying: 1 Key (alpha=0)
Pin No: 2-32pin/Multi Pin
Rated Current: 1.5A
Max. Matings: 5000: 5000
IP Rating: IP50
Specifications: Low Voltage
Configuration: Brass (gold Plated)
High Light:

circular electrical connectors

,

circular power connector

,

16 Pin Lemo Circular Cable Connector

Basic Infomation
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.1B.316.CLAD
Payment & Shipping Terms
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Product Description

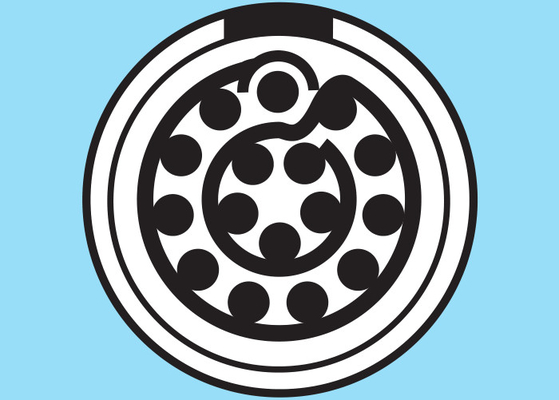

16pin circular cable connector Lemo push pull connector FGG.1B.316 for RED EPIC LCD EVF CABLE



Description:



  • 16pin signal cable connector
  • Application: Red EPIC LCD EVF cable
  • Good quality with low cost
  • Push pull self-locking, very security systems and easy for mating and unmating
  • Endurance (Shell):5000 mating cycles
  • Sodering type for cable welding
  • Cable collet diameter: 2.6mm-7.0mm
  • Cable & Connector custom is welcomed!



Cable collet size for your option:



  Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1





Why you need buy compatible connector?



   100% compatible lemo connector,

    Help you save at least 30% cost

    Cable assembly offer,help you save production time.





With Sleeve or without:



When you choose the plug, there always 2 style for your options : with sleeve or without. To make sure you have done a right chioce, please let me show you difference as followings:



Difference:



1. Advantage :



  • With sleeve: the sleeve can relieve some damage to the cable when working
  • Without sleeve: this structure can short both connectors length, for example, if you only need do 6cm—10cm long cable, you need use this style, it can be more flexible and easier to do cable assembly.

2. Model number difference :



Without sleeve: FGG.0B.304.CLAD52

With sleevr: FGG.0B.304.CLAD52Z, Z stand by sleeve



3.  Structure difference : only a little difference in connector’s tail, no big function difference please see attached pictures:



without sleeve style:





16 Pin Circular Cable Connector Lemo FGG.1B.316 For Red Evf Cable 0





With sleeve style:





16 Pin Circular Cable Connector Lemo FGG.1B.316 For Red Evf Cable 1





please see one our custom cable(it is 8cm long Lemo 2pin to FGJ 6pin for RED camera system ):



16 Pin Circular Cable Connector Lemo FGG.1B.316 For Red Evf Cable 2



16 Pin Circular Cable Connector Lemo FGG.1B.316 For Red Evf Cable 3
