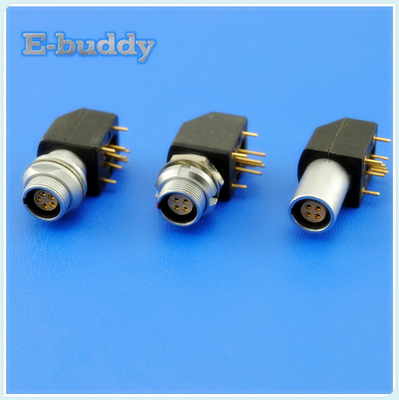

2 Pin Printed Circuit Board Connector Rear Panel Installed Elbow Socket

Name: 2 Pin Printed Circuit Board Connector Rear Panel Installed Elbow Socket
Brand: Ebuddy Technology Co.,Limited
SKU: DXG.1B.304.CLN
Price: 23.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	DXG.1B.304.CLN
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Shell Style/Model:

Solder Or Screw Fixing

Termination Type:

Female Print PCB

Configuration:

1B.302/EXG : 2 Low Voltage

Contact Type:

Elbow Printed Circuit

Specifications:

Low Voltage

Endurance (Shell):

5000 Mating Cycles

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

right angle pcb connector

circular pcb connector

Product Description

EXG PCB mounting connector Lemo alternative 0B / 1B / 2B 2pin rear panel installed elbow socket

Technical Details:

Shell Style/Model: EX.HLN*: Elbow receptacle for printed circuit (solder or screw fixing)
With two nuts
Suitable for printed circuit
Keying circular (can rotate)
Brass (nickel-plated) shell, collect nut, latch sleeve
Contact type: printed circuit board
Maximum matings: 5,000

Specifications:

Contact Type: Print (straight)
Contact Dia.: 1.3 mm (0.051in)
R (max): 3.6 mOhm
Vtest (contact-shell): 1350 V (AC), 1910 V (DC)
Vtest (contact-contact): 1500 V (AC), 2120 V (DC)
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz) IP Rating: 50

PCB Board drilling figure:

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.
