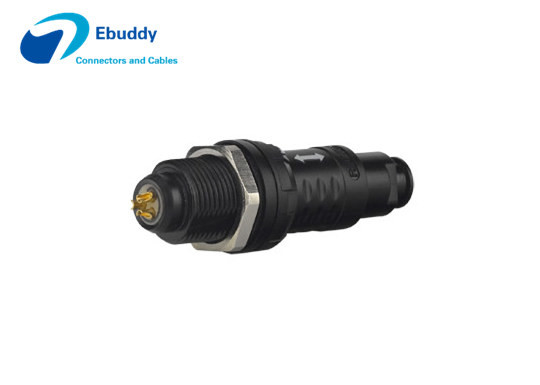

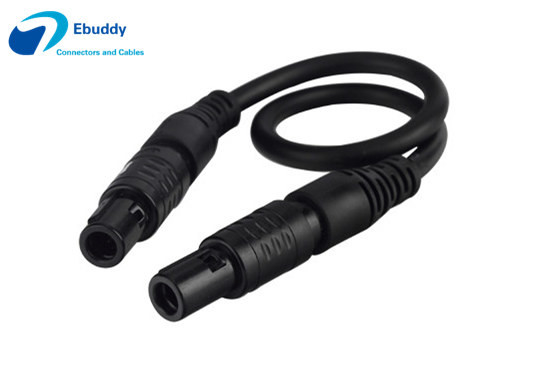

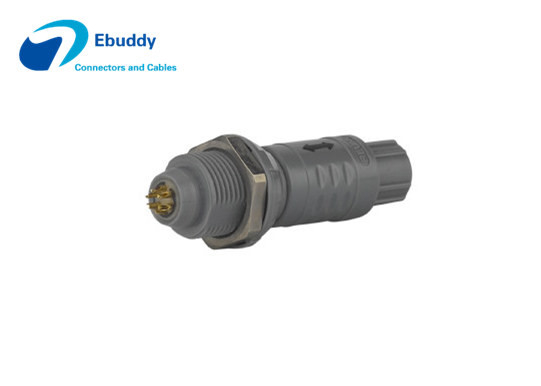

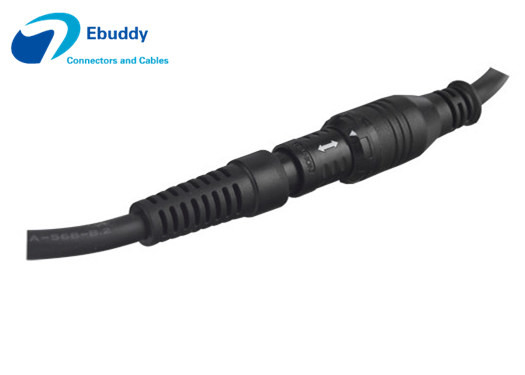

IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins

IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins

  • IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins
  • IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins
  • IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins
  • IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins
IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: PAG.M0.6GL.AC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Application: Power Power Gender: Female
Colors: Optional Number Of Pins: 2 -14 Pins
Max. Matings: 2000 IP Grade: IP65
High Light:

circular plastic connectors

,

lemo redel connectors



IP65 Self locking system push pull connector Compatible Lemo 1P series 2 - 14 Pins



Main Features:



  • Waterproof (IP65) Secure Push pull self-locking system
  • Multi-core type:1P 2-14 core,2P 3-16 core.
  • Welding and printed circuit board needle core.
  • High density installation saves space.
  • The rear nut and socket nut are clour-coded to prevent misinsertion.
  • Plastic housing ,waterproof grade IP50 IP65 double shrapnel lock,keyway prevents rotation.



Applications:



  • This product is widely used in electronic, instrumentation, video processing, medical equipment and other Led electrical signal connection.
  • Especially for frequent connections need to be separated, need to shield the instrumentation and equipment on the electrical signal connection.



Specifications:
Color: Silver/black
Material: Nylon and fibre
Coupling: Threaded coupling
Cable diameter: 3.5-12mm
Termination: Solder
Pin number: 3 pins
Contact diameter: 0.9mm
Working voltage: 380V
Working amper: 10A
Mechanical life: >2000
Contact type: Spring DIP contact
Product Certificat: CE/UL



Size and Drawing:



IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins 0



P series:

IP65 Self Locking System Push Pull Connector Compatible Lemo 1P Series 2 - 14 Pins 1
