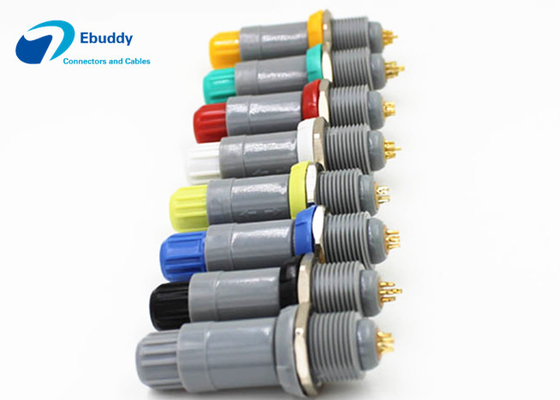

Lemo plastic circular Connector Redel PAG PKG 2-14pin medical male and female connectors

Lemo plastic circular Connector Redel PAG PKG 2-14pin medical male and female connectors

Lemo plastic circular Connector  Redel PAG PKG 2-14pin medical male and female connectors
Lemo plastic circular Connector  Redel PAG PKG 2-14pin medical male and female connectors
Lemo plastic circular Connector  Redel PAG PKG 2-14pin medical male and female connectors
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE.ROHS
Model Number: Redel Connector
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Series: Redel PAG PKG Contact Material: Copper Alloy Plated With Gold
Termination Method: Solder Temperature Range: -40 To +120 Degree
Application: Medical Using Contacts Pins: 2-14pin
High Light:

plastic electrical connectors

,

circular plastic connectors



Lemo plastic circular Connector Redel PAG PKG 2-14pin medical male and female connectors



Features:



  • Quick push-pull self-latching system;
  • Solder and PCB type contacts;
  • Keying system, (G key standard) for connector alignment;
  • Multiple key option to avoid cross mating of similar connectors;
  • High-temperature endurable plastic out shell(-25°C~125°C),suited for many environments;
  • High packing density for space saving.



Mechanical and climatical:



  • Endurance: >1000Circle;
  • Temperature: -25 deg C, +125 deg C
  • IP Rating: IP50



 Compatible with Lemo P series:
Product Name Lemo Model
1P2pin plug PAG.M02.CLAC**Z
1P3pin plug PAG.M03.CLAC**Z
1P4pin plug PAG.M04.CLAC**Z
1P5pin plug PAG.M05.CLAC**Z
1P6pin plug PAG.M06.CLAC**Z
1P7pin plug PAG.M07.CLAC**Z
1P8pin plug PAG.M08.CLAC**Z
1P9pin plug PAG.M09.CLAC**Z
1P10pin plug PAG.M10.CLAC**Z
1P11pin plug PAG.M11.CLAC**Z
1P12pin plug PAG.M12.CLAC**Z
1P14pin plug PAG.M14.CLAC**Z



Size and Drawing:



Lemo plastic circular Connector  Redel PAG PKG 2-14pin medical male and female connectors 0



Lemo plastic circular Connector  Redel PAG PKG 2-14pin medical male and female connectors 1



Lemo plastic circular Connector  Redel PAG PKG 2-14pin medical male and female connectors 2
