8 Pin Circular Cable Connectors

Name: 8 Pin Circular Cable Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: FGI.1B.308.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGI.1B.308.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union,T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Size:

Keying:

155°

Shell Style:

FGI

Pin No:

8pin

Style:

Push Pull Self-locking

Shock Resistance:

100g.6ms

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

circular electrical connectors

circular power connector

8Pin Circular Cable Connectors

Product Description

8 Pin Circular Cable Connectors

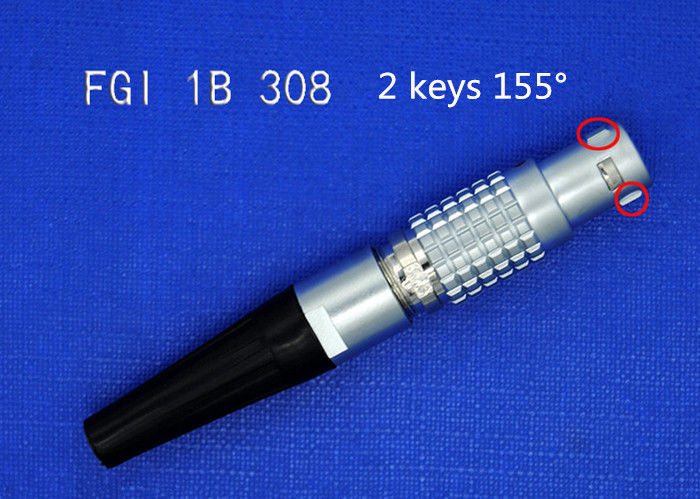

FGI 1B 308 8 Pin Circular Cable Connectors for Leica Data Cable, featuring 2 keys and 155-degree cable connectors.

Technical Specifications

Lemo FGI 108 8-pin connector for Leica data cable
Male plug type, suitable for cable welding
Available in 0B, 1B, 2B sizes
Pin configurations: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 19, 26 pins
Custom cable assembly service available
Fast delivery: 3-5 working days for standard models

Cable Collet Sizes

Collet Type	Outer Diameter Range
M31	2.6 - 3.0 mm
D42	3.1 - 4.0 mm
D52	4.1 - 5.0 mm
D62	5.1 - 6.0 mm
D72	6.1 - 7.0 mm

DIY Cable Assembly Process

Thread cable through sleeve collet nut, then solder cable wires to insulator one by one, noting wire order carefully
Place split insert carrier onto soldered insulator, ensuring carrier slot mates perfectly with insulator subassembly heave
Position collet on cable, ensuring collet heave mates with split insert carrier slot
Insert insulator subassembly, split insert carrier, and collet into outer shell in order, ensuring split insert carrier heave mates with outer shell slot
Tighten collet nut securely
Hitch sleeve to corresponding step of collet nut

Dimensions and Technical Drawings
