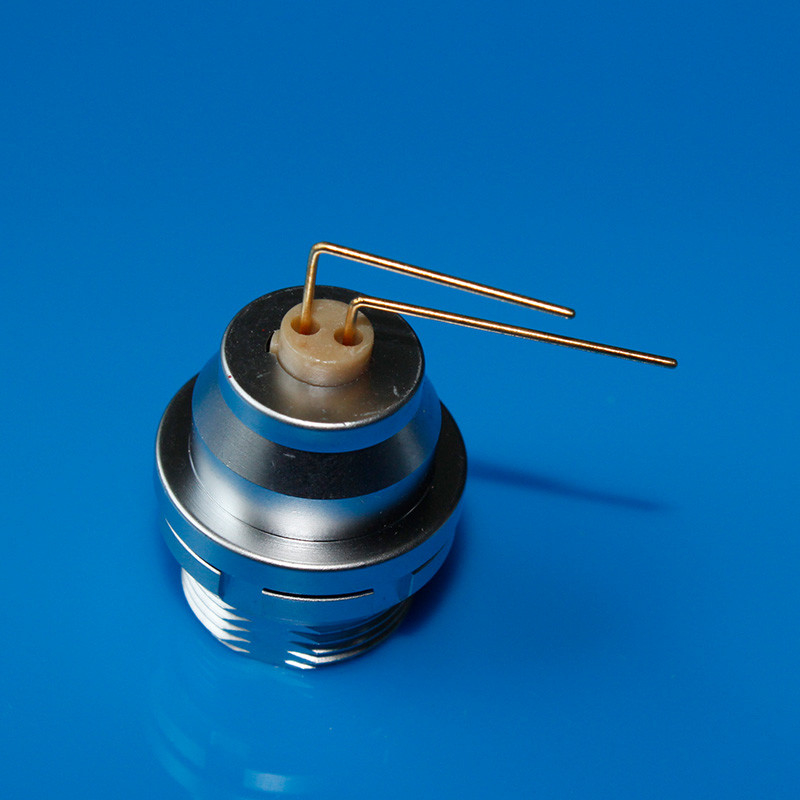

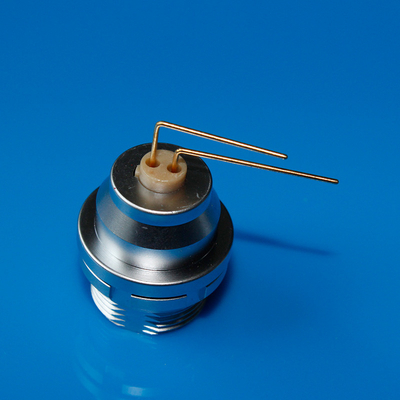

IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket

Name: IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket
Brand: Ebuddy Technology Co.,Limited
SKU: EEG.2K.303.CLV
Price: 0.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EEG.2K.303.CLV
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Contact Type:

R (max):

3.3 MOhm

Humidity (max):

<=95% [at 60 Deg C /140 F]

Climatical Category:

50/175/21

Rated Current:

12 Amps

IP Rating:

IP68

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

lemo circular connectors

lemo triax connectors

Product Description

2pin Waterproof circular connector EEG 2K size 2pin female PCB socket with O-rings

Description:

Technical Details
Contact Type	Print (elbow)
Shell Style/Model	Fixed receptacle, nut fixing, with elbow contacts for printed circuit (back panel mounting)
Max. Matings	5000
Termination type	Female print 90° PCB
Configuration	2K.302 : 2 Low Voltage
Max. Solid Conductor	0.34 mm^2 (AWG 22)
Max. Stranded Conductor	0.34 mm^2 (AWG 22)
R (max)	3.3mOhm
Vtest (AC)	2500 V
Rated Current	12 A

Contacts No.:

00B sizes: 2, 3 and 4
0B sizes: 2 3 4 5 6 7 and 9
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 ,14,16
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 ,26, 32

Application :

Medical
Defense Security
Instrumentation
Transportation
Industry
Energy
Broadcast
Audio/video

Insulating washer(color wheel):

Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.

Color options:

IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket 0

Size and Drawing

IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket 1

IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket 2
