Lemo PHG 4pin free socket 0B 1B 2B 3B size for extension cable PHG.1B.304.CLLD

Name: Lemo PHG 4pin free socket 0B 1B 2B 3B size for extension cable PHG.1B.304.CLLD
Brand: Ebuddy Technology Co.,Limited
SKU: PHG.1B.304
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	PHG.1B.304
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Size:

0B 1B 2B 3B

Gender:

4pin Female

Insulator:

P:PPS

Series::

Lemo PHG

Mating Cycles:

5000 Times

Contact Type:

Free Socket

Packaging Details:

PP bag

Supply Ability:

50000pcs per month

Highlight:

multiple wire connectors

9 pin circular connector

Product Description

Lemo PHG 4pin free socket 0B 1B 2B 3B size cable solder socket for extension cable PHG.1B.304.CLLD

Features:

Lemo PHG 4pin free socket
0B 1B 2B 3B size cable solder socket for extension cable PHG.1B.304.CLLD
Application: extension cable to connect with FGG 0B 1B 2B 3B plug
Housing Material:Brass chrome plated
Contact Type: Female solder
IP Rating:50

Applications:

Medical Electronics
Testing
Measurement instrumentation
Automotive
Audio-video
Aviation
Communications
Industrial Control
Information Systems
Machines

DIY cable assembly process:

Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly
Hitch the sleeve to the corresponding step of collet nut.

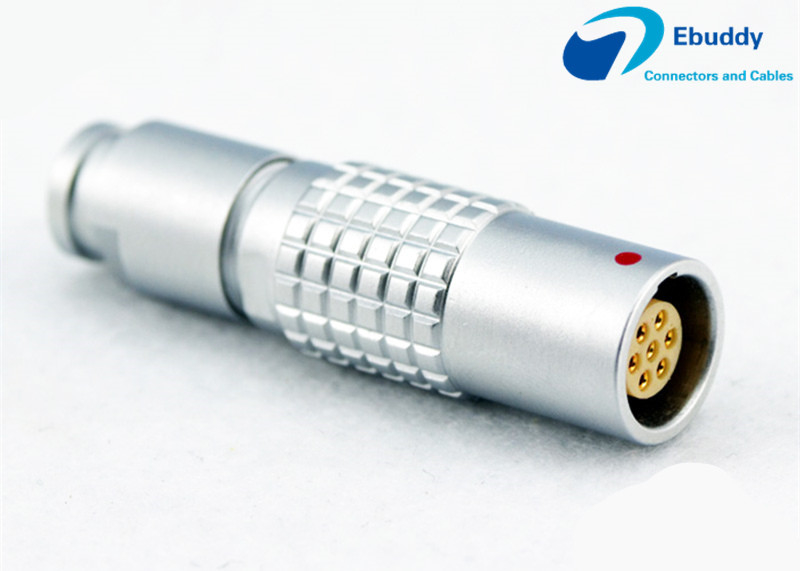

Lemo PHG 4pin free socket 0B 1B 2B 3B size for extension cable PHG.1B.304.CLLD 0

Lemo PHG 4pin free socket 0B 1B 2B 3B size for extension cable PHG.1B.304.CLLD 1

Lemo PHG 4pin free socket 0B 1B 2B 3B size for extension cable PHG.1B.304.CLLD 2
