Lemo EEG female 0B 1B 2B 4pin panel outside assembly socket with fixed nut

Name: Lemo EEG female 0B 1B 2B 4pin panel outside assembly socket with fixed nut
Brand: Ebuddy Technology Co.,Limited
SKU: EEG.0B.304.CLAD
Price: 22.30 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EEG.0B.304.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Keying:

1 Key

Max. Matings:

5000

Temp (min):

-20 Deg C

Temp (max):

+150 Deg C

Series:

Lemo EEG

Specifications:

Low Voltage

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

multiple wire connectors

9 pin circular connector

Product Description

Lemo EEG female 0B 1B 2B 4pin panel outside assembly socket with fixed nut

Description:

Shell Style/Model:EE*: Fixed receptacle, nut fixing (back panel mounting)
Keying:1 key (alpha=0, plug: male contacts, receptacle: female contacts
Housing Material:Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration: 0B.304 : 4 Low Voltage
Rated Current : 7 Amps
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm^2 (AWG 22)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
R (max): 6.1 mOhm
Vtest (contact-contact): 850 V (AC), 1200 V (DC)
Vtest (contact-shell): 1100 V (AC), 1560 V (DC)

Contacts No.:

00B sizes: 2, 3 , 4 , 5pin
0B sizes: 2 3 4 5 6 7 and 9pin
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 , 14, 16, 19pin
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

Custom service:

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Size and Drawing:

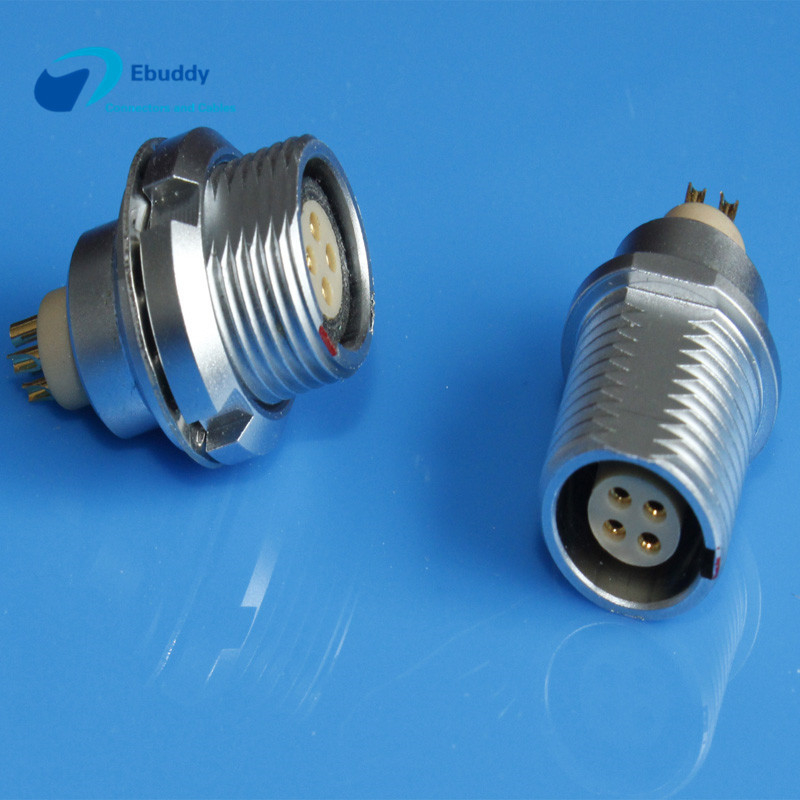

Lemo EEG female 0B 1B 2B 4pin panel outside assembly socket with fixed nut 0

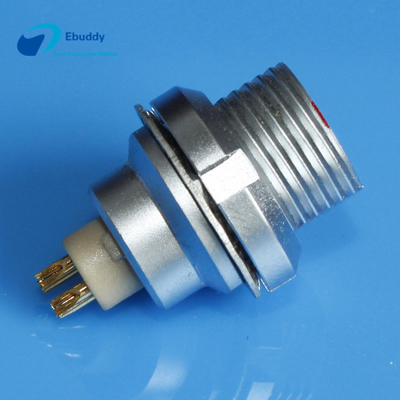

Lemo EEG female 0B 1B 2B 4pin panel outside assembly socket with fixed nut 1

Lemo EEG female 0B 1B 2B 4pin panel outside assembly socket with fixed nut 2
