Lemo EHG inside assemblied panel mount socket Elbow pins 5 pin receptacle EHG.0B.305

Name: Lemo EHG inside assemblied panel mount socket Elbow pins 5 pin receptacle EHG.0B.305
Brand: Ebuddy Technology Co.,Limited
SKU: EHG.0B.305
Price: 22.30 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EHG.0B.305
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Shell Style:

Fixed Receptacle

Model:

FGG EHG

Max. Matings:

5000

IP Rating:

IP50

Keying:

Alpha=0

Insulator:

P:PPS

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

multiple wire connectors

9 pin circular connector

Product Description

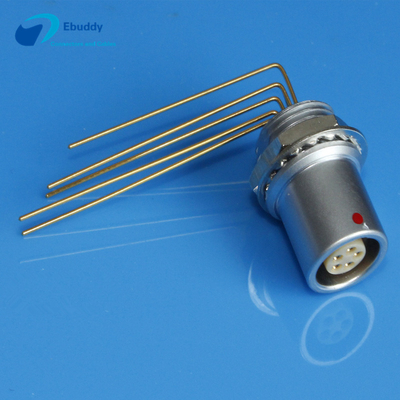

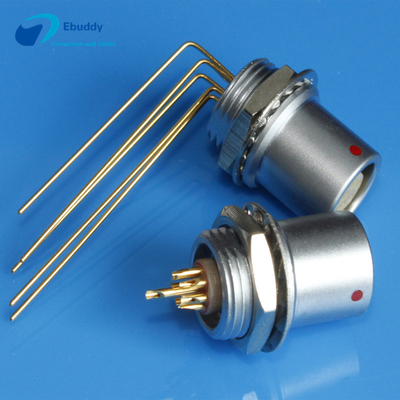

Lemo EHG inside assemblied panel mount socket Elbow pins 5pin receptacle EHG.0B.305

Description:

Shell Style/Model: EH*: Fixed receptacle, nut fixing and protruding shell
Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Rated Current: 6.5 Amps
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm^2 (AWG 22)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
R (max): 6.1 mOhm
Vtest (contact-shell): 700 V (AC), 1000 V (DC)
Vtest (contact-contact): 1000 V (AC), 1400 V (DC)

Warranty Policy: 1year warranty time

For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

We will fix it or replace new brand one
We will bear both sides shipping cost

Custom service:

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Lemo EHG inside assemblied panel mount socket Elbow pins 5 pin receptacle EHG.0B.305 0

Lemo EHG inside assemblied panel mount socket Elbow pins 5 pin receptacle EHG.0B.305 1
