Lemo FGG 5 Pin Circular Push Pull Connectors

Name: Lemo FGG 5 Pin Circular Push Pull Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: HGG.0B.305.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	HGG.0B.305.CLAD
MOQ:	1
Price:	negotiable
Payment Terms:	Western Union,T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Shell Style:

Straight Plug With Cable Collet

Keying:

1 Key (alpha=0)

Housing Material:

Brass (chrome Plated) Shell

Rated Current:

6.5 A

Max. Matings: 5000:

5000

IP Rating:

IP50

R (max):

6.1 MOhm

Configuration:

Brass (gold Plated)

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

circular din connector

circular power connector

5Pin Circular Push Pull Connectors

Product Description

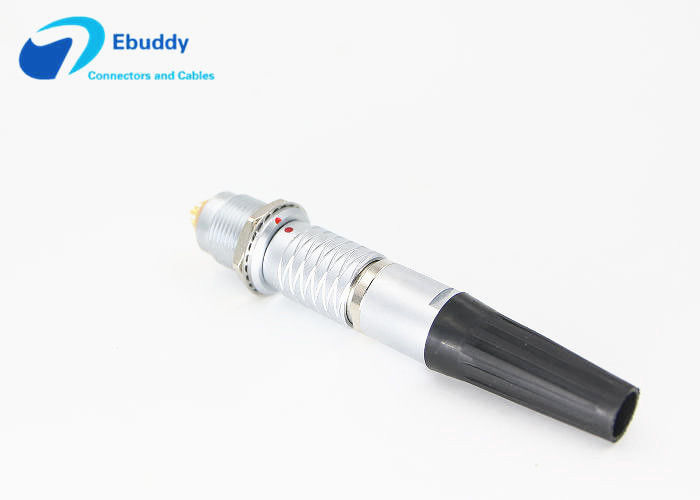

Lemo FGG 5 Pin Circular Push Pull Connectors

5-pin push pull circular connector designed for surveying instruments and cable applications.

Technical Specifications

Series: FGG*: Straight plug
Keying: 1-key fixing, 0°
Housing Material: Brass chrome plated

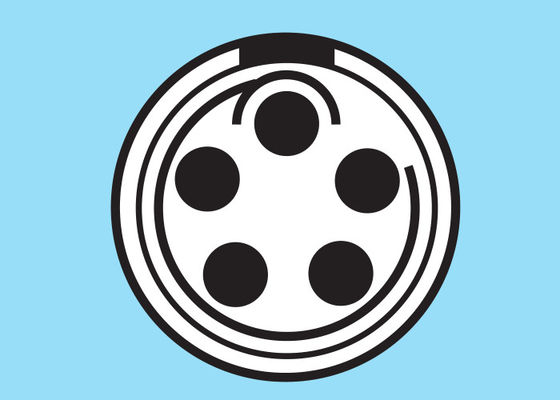

Insert: 1B.305 : 5 Low Voltage
Configuration: Brass (gold plated)
Insulator: PPS
Specifications: Low Voltage
Vtest (AC): 1000 V
Rated Current: 6.5A
Endurance (Shell): 5000 mating cycles

Cable Collet Size Options

Collet No.	Type	Coding	Max OD (mm)	Min OD (mm)
0B	D	32	3.0	2.1
0B	D	42	4.0	3.1
0B	D	52	5.0	4.1

Applications

Medical

Defense Security

Instrumentation

Transportation

Industry

Energy

Broadcast

Audio/Video

Waterproof IP Ratings

Our connectors feature two primary IP ratings: IP50 and IP68. For IP50 protection, choose Lemo B series. For higher IP68 protection, Lemo K series and S series are recommended.

IP50 Rating:

Dust-proof: Completely prevents foreign object invasion; dust intrusion does not affect electrical operation
Waterproof: No special protection against water or moisture

IP68 Rating:

Dust-proof: Completely prevents foreign objects and dust intrusion
Waterproof: Can be completely immersed in water (conditions determined by manufacturer)

Colorful Sleeve (Jacket) Options

Specifications:

Material: Polyurethane (PU)
Temperature Range: -40°C to +80°C
Colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm - 8.2mm

Color Options:

Dimensions and Technical Drawings
