Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326

Name: Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326
Brand: Ebuddy Technology Co.,Limited
SKU: ECG.2B.326
Price: 23.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	ECG.2B.326
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Rated Current:

2 Amps

R (max):

8.7 MOhm

Shielding (min):

40 DB (1 GHz)

Configuration:

2B.326 : 26 Low Voltage

Pin No:

6pin

Application:

Printed Circuit

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

right angle pcb connector

circular pcb connector

Product Description

Multi pin 2-26pin PCB printed circuit board connector Lemo push pull socket ECG.2B.326

Technical Details:

Shell Style/Model: EC*: Fixed receptacle with two nuts (back panel mounting)
Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material : Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration: 2B.326 : 26 Low Voltage
Insulator: P:PPS
Rated Current: 2 Amps
R (max): 8.7 mOhm

Contacts No.:

00B sizes: 2, 3 and 4
0B sizes: 2 3 4 5 6 7 and 9
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

Insulating washer(color wheel):

Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.

Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.

Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size

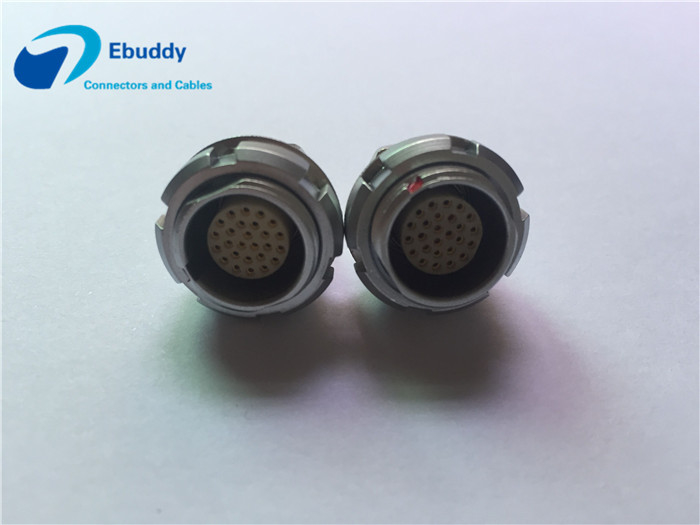

Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326 0

Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326 1
