EPG 0B 304 4 Pin Printed Circuit Board Connector Lemo PCB 90 Degree Right Angle

Name: EPG 0B 304 4 Pin Printed Circuit Board Connector Lemo PCB 90 Degree Right Angle
Brand: Ebuddy Technology Co.,Limited
SKU: EPG.0B.304
Price: Negotiable USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EPG.0B.304
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Contact Type:

Print (Elbow)

Max. Matings:

5000

Shell Style/Model:

Elbow Receptacle

Vtest (contact-shell):

700 V (AC), 990 V (DC)

Vtest (contact-contact):

800 V (AC), 1130 V (DC)

IP Rating:

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

pcb mount circular connector

circular pcb connector

Product Description

Lemo PCB 90 degree right angle EPG 0B 304 4pin connector EPG.0B.304

Main features:

Lemo PCB 90 degree right angle female connector
EPG 0B 304 4pin connector EPG.0B.304
Keying: 1 key (alpha=0)
Termination type: Female print PCB
Totaly compatible Lemo EPG, good quality with Endurance 5000 mating cycles
Customized demands are welcome! If you have any customized requirements, please send us details drawing, we will do for you.

Contacts No.:

00B sizes: 2, 3 and 4
0B sizes: 2 3 4 5 6 7 and 9
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

PCB Board drilling figure:

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

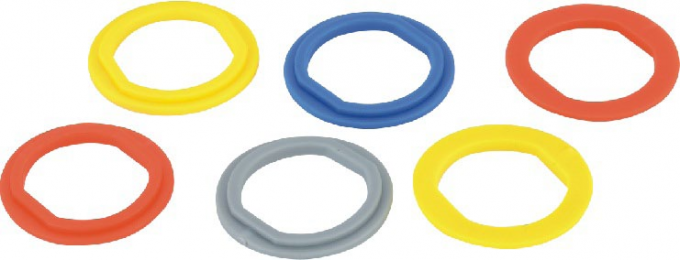

Insulating washer(color wheel):

Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size

EPG 0B 304 4 Pin Printed Circuit Board Connector Lemo PCB 90 Degree Right Angle 0

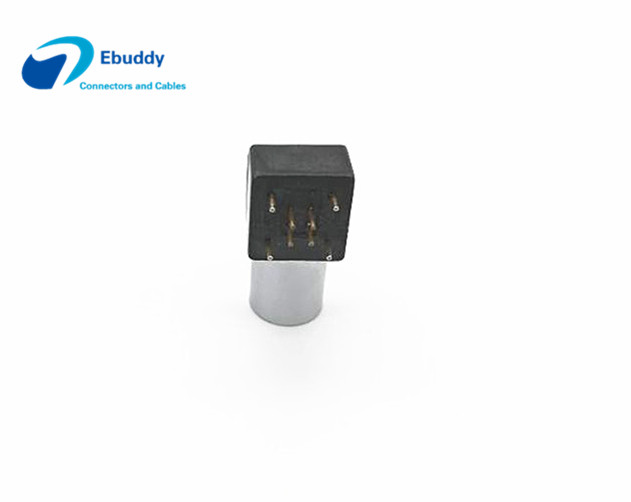

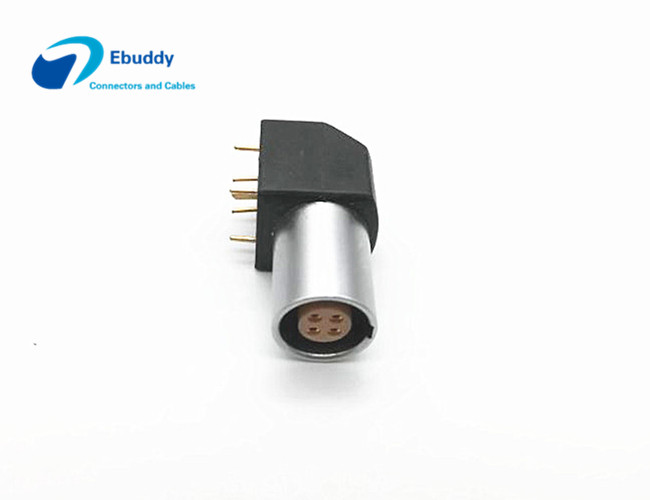

Size and drawing:

EPG 0B 304 4 Pin Printed Circuit Board Connector Lemo PCB 90 Degree Right Angle 1

EPG 0B 304 4 Pin Printed Circuit Board Connector Lemo PCB 90 Degree Right Angle 2

EPG 0B 304 4 Pin Printed Circuit Board Connector Lemo PCB 90 Degree Right Angle 3
