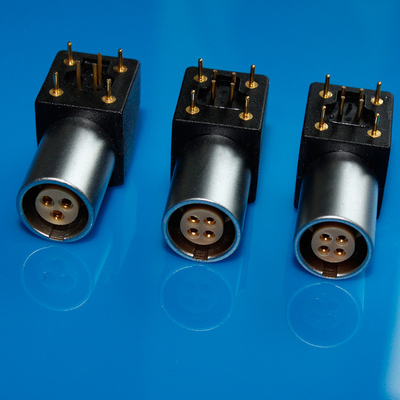

4pin Elbow 90 degree PCB connector Lemo 4pin compatible printed circuit connector EPG 0B/1B/2B/3B size

Name: 4pin Elbow 90 degree PCB connector Lemo 4pin compatible printed circuit connector EPG 0B/1B/2B/3B size
Brand: Ebuddy Technology Co.,Limited
SKU: DPG.1B.306.CLAD
Price: 23.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	DPG.1B.306.CLAD
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Shell Style/Model:

Elbow Receptacle

Application:

Printed Circuit

Keying:

1 Key (alpha=0)

Configuration:

1B.306/EPG : 6 Low Voltage

Vibration:

15 G [10 Hz - 2000 Hz]

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

pcb mount circular connector

circular pcb connector

Product Description

4pin Elbow 90 degree PCB connector Lemo 4pin compatible printed circuit connector EPG 0B/1B/2B/3B size

Main features:

Elbow PCB printed circuit board connector
Security of the push-pull self-latching system;
Multipole types 2 to 26 contacts;
High packing density for space savings;
Multiple key options to avoid cross mating of similar connectors;
Pull-away plugs with lanyards available.
Keying system for connector alignment;
Solder or print contacts(straight or elbow);
360°screening for full EMC shielding;

Contacts No.:

00B sizes: 2, 3 and 4
0B sizes: 2 3 4 5 6 7 and 9
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

Important Applications:

Medical Electronics
Test and Laboratary
Measurement Instrumentation
Data and Telecom Systems
Audio and video Applications
Military and Aerospace
Industrial Controls
Nuclear Technology

Insulating washer(color wheel):

Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size

4pin Elbow 90 degree PCB connector Lemo 4pin compatible printed circuit connector EPG 0B/1B/2B/3B size 0

4pin Elbow 90 degree PCB connector Lemo 4pin compatible printed circuit connector EPG 0B/1B/2B/3B size 1
