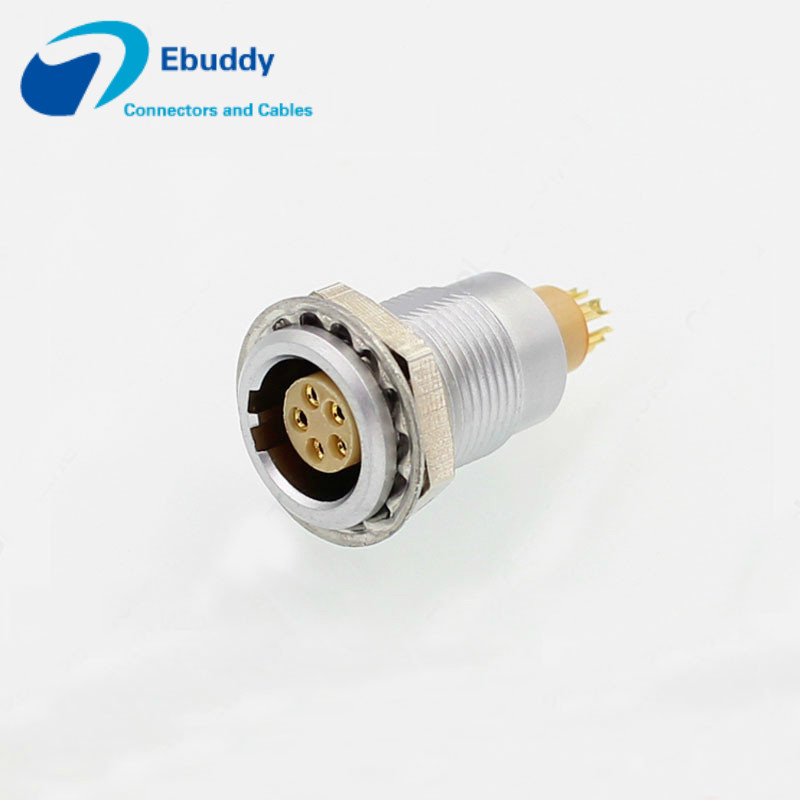

Lemo Type Connector Keying A Lemo Alternative Female Socket EGA.0B.305.CLL With 2 Key

Name: Lemo Type Connector Keying A Lemo Alternative Female Socket EGA.0B.305.CLL With 2 Key
Brand: Ebuddy Technology Co.,Limited
SKU: EGA.0B.305
Price: 4.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EGA.0B.305
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Key:

Contact:

Female

Style:

EGA Socket

Model Number:

EGA.0B.305.CLL

Housing Material:

Brass Chrome Plated

Configuration:

Brass (gold Plated)

Packaging Details:

PP bag

Supply Ability:

500000pcs per month

Highlight:

circular electrical connectors

circular power connector

Product Description

Lemo Type Connector Keying A Female Socket EGA.0B.305.CLL With 2 Key

High-quality Lemo alternative female socket connector featuring Keying A configuration with 2 keys for secure mating and reliable performance in industrial applications.

Technical Specifications

Shell Style/Model	EGA: Fixed receptacle, nut fixing
Keying	2 keys (alpha=30)
Configuration	0B.305: 5 Low Voltage
Rated Current	6.5 Amps
Contact Type	Solder
Maximum Matings	5000
Contact Diameter	0.7 mm (0.028 in)
Bucket Diameter	0.8 mm (0.031 in)
Max Solid Conductor	0.34 mm² (AWG 22)
Max Stranded Conductor	0.34 mm² (AWG 22)
R (max)	6.1 mOhm
Test Voltage (contact-shell)	700 V (AC), 1000 V (DC)
Test Voltage (contact-contact)	1000 V (AC), 1400 V (DC)

Custom Services

Common Model Connectors Stock: Standard models available for quick shipment within 3 days
Cable Assembly Service: Custom cable assemblies tailored to your specific requirements
Technical Support: Professional assistance for connector and cable application challenges
Cable Assembly Solutions: Customized cable assembly solutions to meet your needs
Customized Connector Service: New mold development for specialized connector requirements

Dimensions and Technical Drawings

Technical drawing

Product configuration
