Lemo Cable Connector
Created with Pixso. Compatible Lemo Circular Back Panel Mounting Socket PFG Male Female Connectors
name
  • name
  • name
  • name

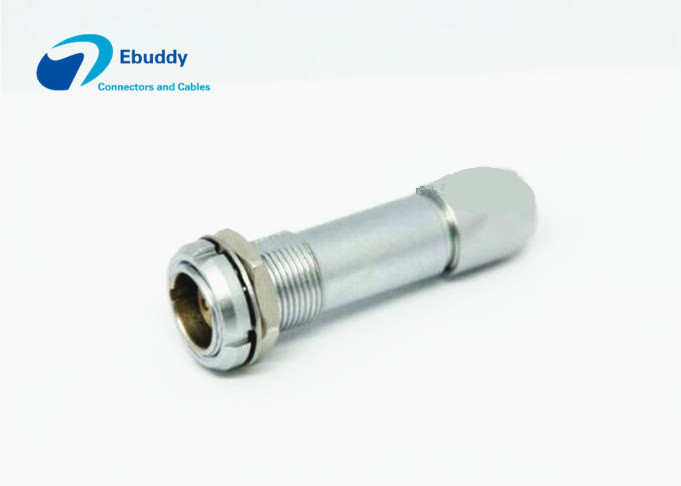

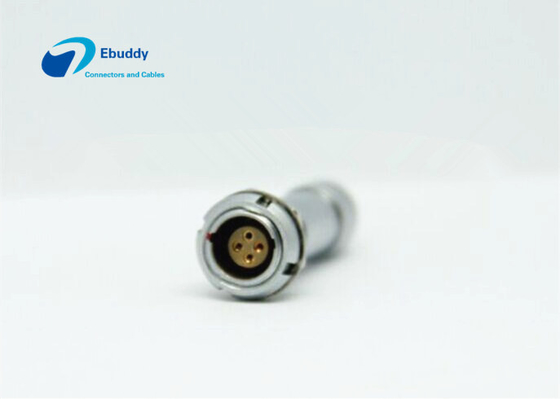

Compatible Lemo Circular Back Panel Mounting Socket PFG Male Female Connectors

Brand Name: OEM
Model Number: PFG-01
MOQ: 1pc
Price: Negotiable
Delivery Time: 3-10 working days
Payment Terms: Western Union, MoneyGram, T/T,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS
Type:
SCART
Application:
PCB
Contact No.:
2-32PINS
Gender:
Female
Protection Grade:
IP50
Shell Size:
0B / 1B
Packaging Details:
PP bag
Supply Ability:
50000pcs per month
Highlight:

lemo compatible connector

,

soldering cable connectors

Product Description
Compatible Lemo Circular Back Panel Mounting Socket PFG Male Female Connectors
High-quality compatible Lemo circular back panel mounting socket PFG connectors designed for reliable performance in demanding industrial applications.
Product Features
  • Type: SCART
  • Application: PCB
  • Gender: Female
  • Shell size: 0B/1B
  • Contact configuration: 2-32 pin
  • Contact types: Solder, print or crimp (straight or elbow)
  • Contacts: Brass with gold-plated finish
  • Body material: Brass with nickel-plated surface
  • Insulator: PPS
  • Protection index: IP50
  • Temperature range: -55°C to +250°C
  • Certifications: CE, RoHS, ISO9001
Technical Specifications
Parameter Value
Working voltage (contact to contact) 1500V
Test voltage (contact to shell) 1,350V
Current rating per pin 15A
Shielding (10 MHz) 75 dB minimum
Shielding (1 GHz) 40 dB minimum
Pressure resistance (maximum) 60 bar (870psi)
Temperature range -40°C to 200°C
Protection grade options IP50, IP66, IP67, IP68
Endurance (shell) 5,000 mating cycles
Humidity tolerance <95% at 60°C/140°F maximum
Shock resistance 100g (6ms)
Manufacturer Profile
  • Specialized in manufacturing and exporting various metal and plastic circular push-pull connectors and cable assemblies
  • 100% compatible with original ODU and BINDER connectors
  • Comprehensive series including B, K, S, F, E, HR10A, P, M4, M12, M16
  • Custom clearance options: CO, Form A, Form E
  • Certifications: CE, ROHS, ISO9001-2008, SGS Audited manufacturer
  • All products tested to withstand 5,000 mating cycles
  • 1-year warranty period
  • Customized cable and connector solutions available
Dimensions and Technical Drawing
Compatible Lemo Circular Back Panel Mounting Socket PFG Male Female Connectors 0
