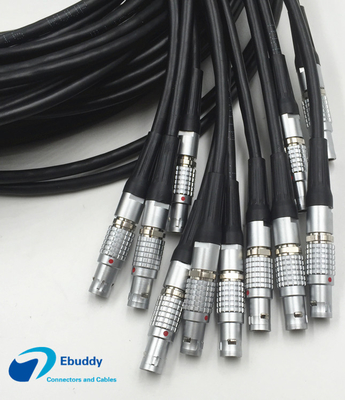

FGA 2 keying male plug Lemo B Series Connectors 0B size 5pin FGA.0B.305.CLAD

Lemo B series connectors FGA 2 keying male plug 0B size 5pin FGA.0B.305.CLAD

• FGA 2 keying male plug 0B size 5pin FGA.0B.305.CLAD
• Lemo model: FGA.0B.305.CLAD
• Application: Camera, medical, Instrumentation, Industry,Energy
• Pins: 0B 5pin
• Style: FGA straight plug
• Keying: A key, 2 keying
• Push pull self-locking, very security systems and easy for mating and unmating
• High-low insulator positiobning avoid mismating
• 360 degree screening for full EMS shielding

• Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
• Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
• put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
• pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
• Screw the collet nut tightly
• Hitch the sleeve to the corresponding step of collet nut.
