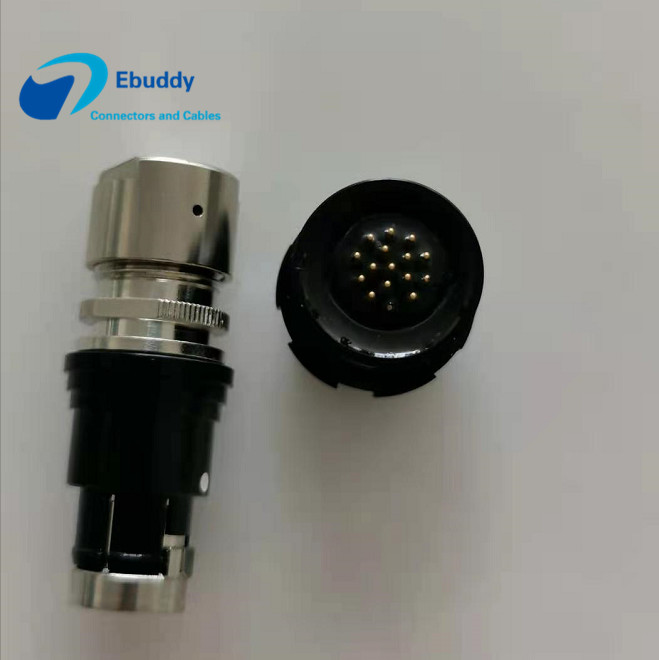

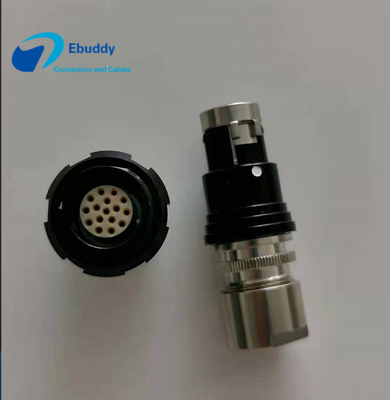

PCB Mounted 16pin PPS PEEK Fischer Cable Connector

PCB Mounted 16pin PPS PEEK Fischer Cable Connector

PCB Mounted 16pin PPS PEEK Fischer Cable Connector
PCB Mounted 16pin PPS PEEK Fischer Cable Connector
PCB Mounted 16pin PPS PEEK Fischer Cable Connector
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: EGG.2F.316
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Pins: 16 Pins Type: Adapter
Application: Automotive Insulator: PPS / PEEK
Housing Material: Chrome-plated, Brass Connector Panel Size: 9mm
High Light:

16pin Fischer Cable Connector

,

PPS PEEK Fischer Cable Connector

,

PCB Mounted Fischer 104 Connector



Fischer compatible connector black color Fischer 104 16pin PCB mounted connector



Specification:



  • Compatible Fischer 104 series Connector.
  • Type: Adapter
  • Application: Automotive
  • Gender: Female+Male
  • Connector panel size: 9mm
  • Insulator: PPS/PEEK
  • Housing material: Chrome-plated, brass alloy
  • Contact material: Gold-plated, brass alloy

​

Technical characteristics:

(Mechanical and Climatic)



  • 1. Endurance: > 5000 mating circles;
  • 2. Humidity (Max): <=95% [at 60 deg C];
  • 3. Temperature: -45 deg C, +125 deg C;
  • 4. Vibration: 15 g[10 HZ-2000HZ];
  • 5. Shock resistance: 100 g [6 ms];
  • 6. Salt Spray Corrosion: > 48h;
  • 7. IP Rating: IP65-68.



Features:
  • 1-The quick push-pull self-locking system
  • 2-Welding, crimping, and printing board connector
  • 3-Straight, elbow.
  • 4-Multiple keys options to avoid cross mating of similar connectors.
  • 5- 360° screening for full EMC shielding
  • 6-Series of multi-core, high-density installation space-saving
  • 7-Key system pins standard for connector alignment.



Size and Drawing:







      PCB Mounted 16pin PPS PEEK Fischer Cable Connector 0

PCB Mounted 16pin PPS PEEK Fischer Cable Connector 1



PCB Mounted 16pin PPS PEEK Fischer Cable Connector 2
