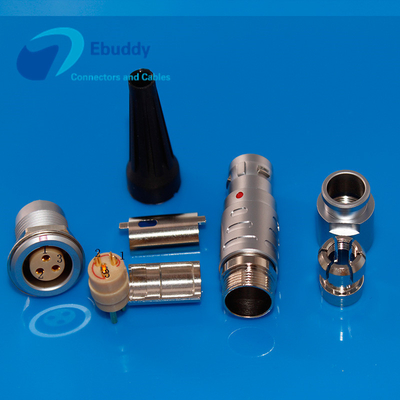

3pin Male Female Circular Cable Connectors Lemo FGG EGG 303 With Color Full Jacket

Name: 3pin Male Female Circular Cable Connectors Lemo FGG EGG 303 With Color Full Jacket
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.2B.312.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.2B.312.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

Male And Female

Size:

Lemo 2B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

3pin Female Circular Cable Connectors

Color Full Jacket Circular Cable Connectors

Lemo FGG Male Cable Connector

Product Description

3-Pin Male & Female Circular Cable Connectors - Lemo Alternative FGG EGG 303 with Color Jacket

High-quality 3-pin circular cable connectors fully compatible with Lemo connectors, featuring durable color jackets for easy identification and organization.

Product Features

Fully compatible with Lemo connector systems
Premium quality construction for easy locking and mating
Available in multiple pin configurations: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, and 19 pins
Soldering type and PCB printed circuit options available
Multiple type options: male plug, female plug, female socket, male socket
Cable collet diameter range: 2.6mm to 7.0mm
Custom cable and connector solutions available

Cable Collet Size Specifications

Collet 0B

Type	Coding	Max OD (mm)	Min OD (mm)
D	32	3.0	2.1
D	42	4.0	3.1
D	52	5.0	4.1

Collet 1B

Type	Coding	Max OD (mm)	Min OD (mm)
M	31	3.0	2.6
D	42	4.0	3.1
D	52	5.0	4.1
D	62	6.0	5.1
D	72	7.0	6.1

Collet 2B

Type	Coding	Max OD (mm)	Min OD (mm)
M	42	4.0	3.1
D	52	5.0	4.1
D	62	6.0	5.1
D	72	7.0	6.1
D	82	8.0	7.1
D	92	9.0	8.1
D	99	9.7	9.1

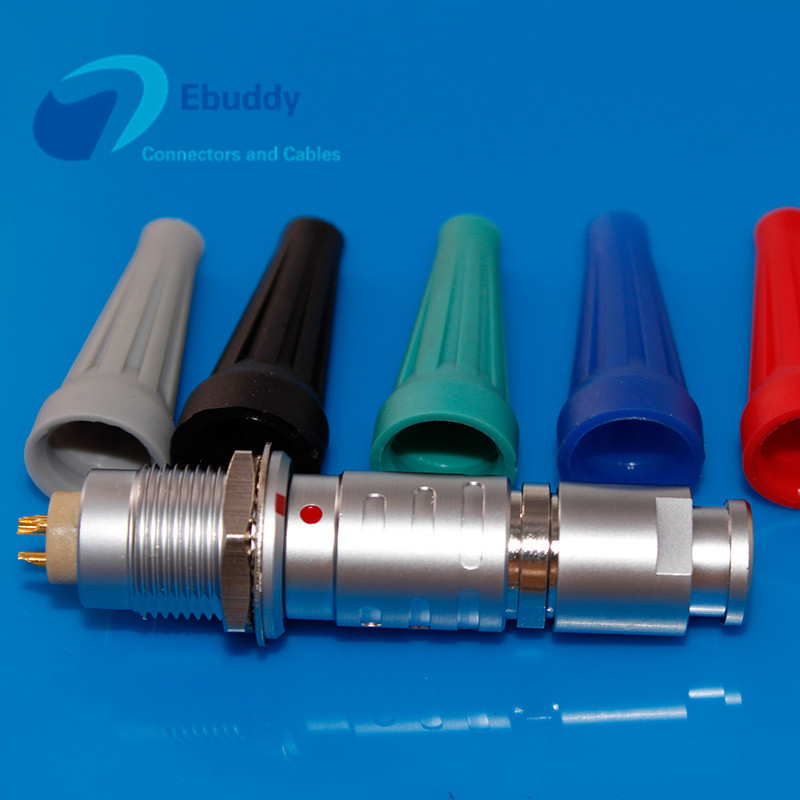

Colorful Sleeve (Jacket) Specifications

Material: Polyurethane (PU)
Temperature range: -40°C to +80°C
Available colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD range: 3.1mm to 8.2mm

Why Choose Ebuddy

Fully compatible with Lemo/ODU/Fischer connectors at lower cost
Certified to ROHS, ISO9001:2008, and UL standards
Short delivery time: 7-10 days typically
Factory production capacity: 5,000 sets per week
Samples available for quality verification
