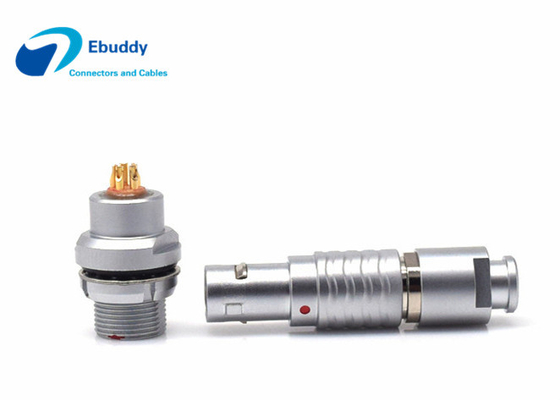

Lemo Alternative Male Miniature Circular Connectors 7pin 0B Size FGG.0B.307

Name: Lemo Alternative Male Miniature Circular Connectors 7pin 0B Size FGG.0B.307
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.0B.307.CLAD42Z
Price: 0.5 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.0B.307.CLAD42Z
MOQ:	1
Price:	0.5USD
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Shell Style:

Straight Plug With Cable Collet

Shock Resistance:

100g.6ms

Temp (min):

-20 Deg C

Temp (max):

+150 Deg C

Humidity (max):

<=95% [at 60 Deg C / 140 F]

Configuration:

Brass (gold Plated)

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

Male Miniature Circular Connectors

0B Size Miniature Circular Connectors

0B Size mini circular connector

Product Description

Lemo Alternative Male Miniature Circular Connectors 7pin 0B Size FGG.0B.307

Miniature circular push pull Lemo alternative male connector with 7pin 0B size FGG.0B.307

Technical Specifications

Series: FGG*: Straight plug
Keying: 1key fixing, 0°
Configuration: Brass (gold plated)
Insert: 1B.307 : 7 Low Voltage
Contact Type: Solder
Insulator: P: PPS
R (max): 6.1 mOhm
Vtest (AC): 1200 V
Rated Current: 5 A
Endurance (Shell): 5000 mating cycles
Temp (min): -20°C
IP Rating: 50
Shock resistance: 100g.6ms
Salt spray corrosion test: > 48hrs
Resistance to vibration: 10-20000Hz, 15g

Cable Collet Size Options

M31: OD=2.6-3mm
D42: OD=3.1-4.0mm
D52: OD=4.1-5.0mm
D62: OD=5.1-6.0mm
D72: OD=6.1-7.0mm

Performance Details

Specification	Value
Insert	1B.303 : 7 Low Voltage
Specifications	Low Voltage
Contact Type	Solder
Max. Matings	5000
Contact Dia	0.5 mm
Bucket Dia	0.45mm
Max. Solid Conductor	0.09 mm² (AWG 28)
Max. Stranded Conductor	0.09 mm² (AWG 28)
R (max)	8.7mOhm
Vtest (AC)	2000 V
Rated Current	2.5 A

Benefits of Compatible Connectors

100% compatible with Lemo connectors
Save at least 30% on costs
Cable assembly service available to save production time

Frequently Asked Questions

How to choose the right connector?
Please provide the Lemo connector model number or specify connector size and pin count requirements.

Payment methods?
We accept PayPal, TT, Western Union, and other payment terms.

Shipping options?
We ship via DHL, FedEx, UPS, or you can choose your preferred carrier.

Compatibility with existing Lemo connectors?
Yes, our connectors are fully compatible with Lemo connectors.

Delivery time?
Typically 5-8 days after payment receipt.

Custom Services

Common model connectors stock: We maintain inventory for popular models and can ship within 3 days
Cable assembly service: Custom cable assembly according to your specifications
Technical support: Professional assistance for connector and cable operation issues
Cable assembly solutions: Custom solutions tailored to your requirements
Customized connector service: New mold development for specialized connector needs

Size and Drawing

Our Advantages

100% high quality with 30-day warranty on failed parts
10-year warranty available upon request
Repair parts available for 10 years with EOL product notifications
Free logo printing on over-molded connectors available
Custom packaging design available
Special features and services available upon request
