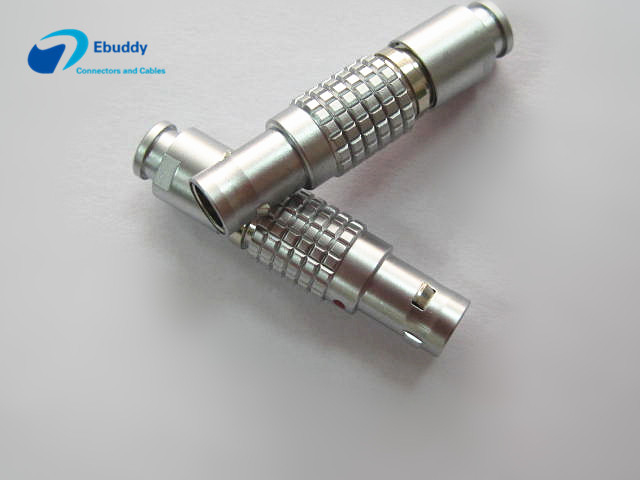

3pin Male Female Circular Cable Connectors Lemo FGG EGG 303 With Color Full Jacket

Name: 3pin Male Female Circular Cable Connectors Lemo FGG EGG 303 With Color Full Jacket
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.2B.312.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.2B.312.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

Male And Female

Size:

Lemo 2B

Shock Resistance:

100g.6ms

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

3pin Circular Cable Connectors

Full Jacket Circular Cable Connectors

Full Jacket circular wire connectors

Product Description

3-Pin Male Female Circular Cable Connectors - Lemo Alternative FGG EGG 303

High-quality 3-pin male and female circular cable connectors with full color jacket, fully compatible with Lemo connectors.

Product Specifications

Fully compatible with Lemo connectors
Premium quality construction for easy latching and mating
Available in multiple pin configurations: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 pins
Connection types: soldering and PCB printed circuit options
Gender options: male plug, female plug, female socket, male socket
Cable collet diameter range: 2.6mm - 7.0mm
Custom cable and connector solutions available

Cable Collet Size Options

Collet 0B

Type	Coding	Max (mm)	Min (mm)
D	32	3.0	2.1
D	42	4.0	3.1
D	52	5.0	4.1

Collet 1B

Type	Coding	Max (mm)	Min (mm)
M	31	3.0	2.6
D	42	4.0	3.1
D	52	5.0	4.1
D	62	6.0	5.1
D	72	7.0	6.1

Collet 2B

Type	Coding	Max (mm)	Min (mm)
M	42	4.0	3.1
D	52	5.0	4.1
D	62	6.0	5.1
D	72	7.0	6.1
D	82	8.0	7.1
D	92	9.0	8.1
D	99	9.7	9.1

Colorful Sleeve (Jacket) Specifications

Material: Polyurethane (PU)
Temperature range: -40°C to +80°C
Available colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm - 8.2mm

Why Choose Ebuddy

Fully compatible with Lemo/ODU/Fischer connectors at lower cost
Certified to ROHS, ISO9001:2008, and UL standards
Short delivery time: 7-10 days typically
Factory production capacity: 5,000 sets per week
Samples available for quality verification

Key Features of Circular Cable Connectors

Safe field use with high protection rating, tensile strength, abrasion and notch resistance
Flexible design for on-site assembly with extremely high winding and unwinding strength
Soldering connection technology for various conductor types
Lemo 2B extension cables or flying leads with oil and chemical resistance
High temperature tolerance up to 260°C for solder reflow applications
