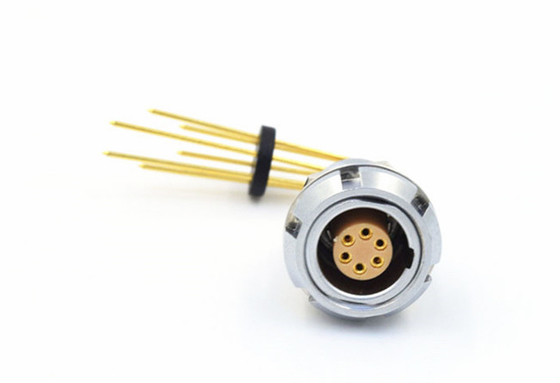

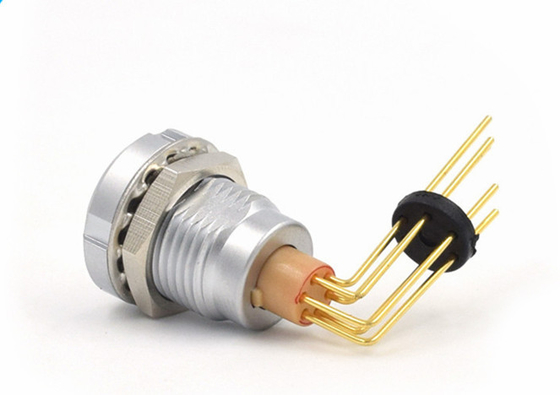

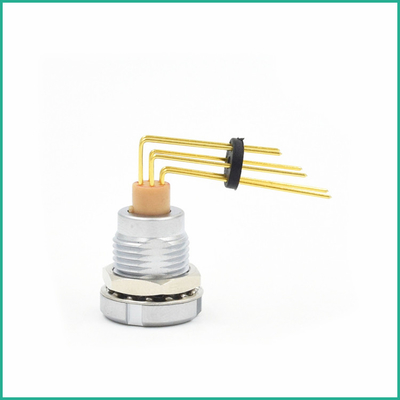

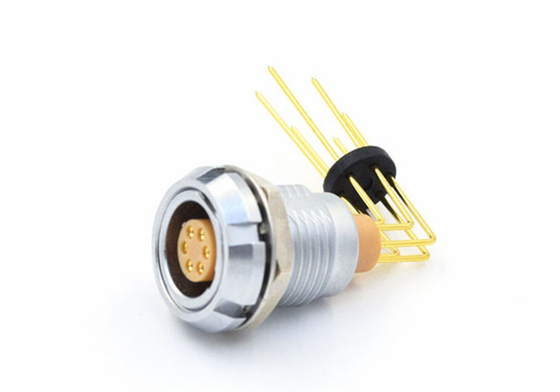

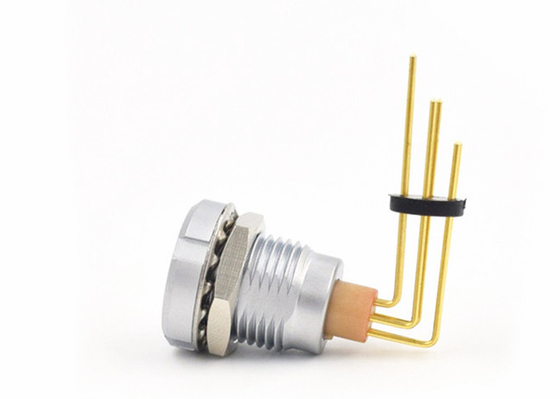

6pin Lemo B Series Connectors ECG Elbow Printed Circuit Pins With 2 Nuts Fixing

Name: 6pin Lemo B Series Connectors ECG Elbow Printed Circuit Pins With 2 Nuts Fixing
Brand: Ebuddy Technology Co.,Limited
SKU: ECG.1B.306.CLV
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	ECG.1B.306.CLV
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Style:

Elbow Printed

Warranty Time:

1 Year

Keying:

1 Key

Series::

Lemo ECG

Configuration:

Brass (gold Plated)

IP Rate:

IP65

Packaging Details:

PP bag

Supply Ability:

50000pcs per month

Highlight:

6pin Lemo B Series Connectors

ECG Lemo B Series Connectors

Elbow printed Lemo B Series Connectors

Product Description

6-Pin Lemo B Series ECG Elbow Printed Circuit Connectors with 2 Nuts Fixing

High-quality Lemo B Series ECG elbow printed circuit connectors designed for reliable performance in medical and industrial applications.

Product Features

Lemo B Series ECG Rear Panel Mounted Female Socket
Available in multiple sizes: 1B, 0B, 2B, 3B, 4B
6-pin PCB female configuration with other pin options available
Custom cable assembly services available
Silver chrome finish with black or custom color options

Product Description

Lemo ECG Elbow Printed Circuit Receptacle features 2 nuts and keying options (G, A, B, C) to prevent movement and mismatching. This 90-degree elbow printed circuit pins receptacle is designed for external assembly with reliable connectivity.

Technical Specifications

Specification	Details
Shell Style/Model	EC*: Fixed receptacle with two nuts and elbow contacts for printed circuit (back panel mounting)
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Contact Type	Print (elbow)
Contact Diameter	0.7 mm (0.028in)
R (max)	6.1 mOhm
Vtest (contact-shell)	1200 V (AC), 1700 V (DC)
Temperature Range	-55°C / +250°C

Dimensions & Technical Drawing

Frequently Asked Questions

Are you a factory or trade company?

We are manufacturer of connectors and cables with 10 years experience.

Do you provide samples? Is it free?

We can provide a small number of free samples, but you need to pay the freight.

What can you buy from us?

Push-pull connectors, cable assembly, bayonet connectors, military connectors, custom connectors.

What about the lead time?

If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Otherwise, it depends on the quantity you need.

What payment methods do you support?

We accept T/T, PayPal, Western Union.
