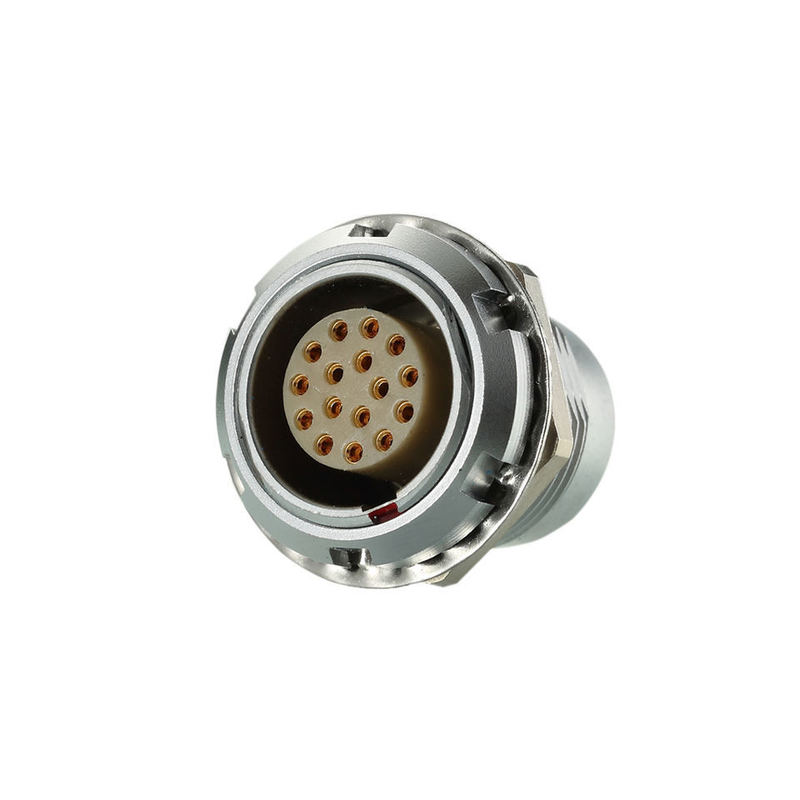

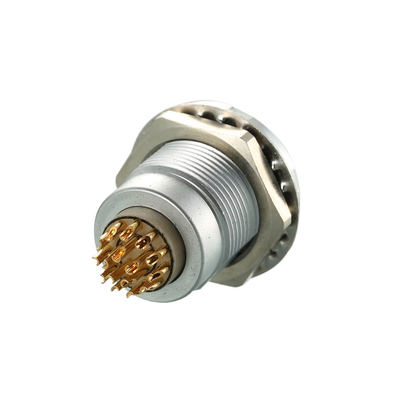

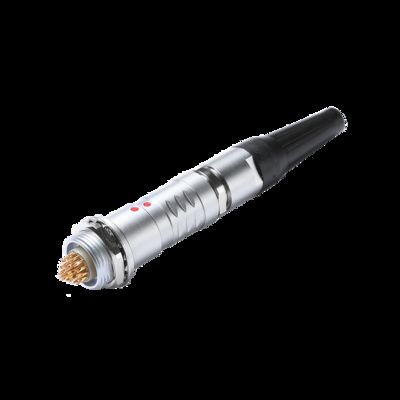

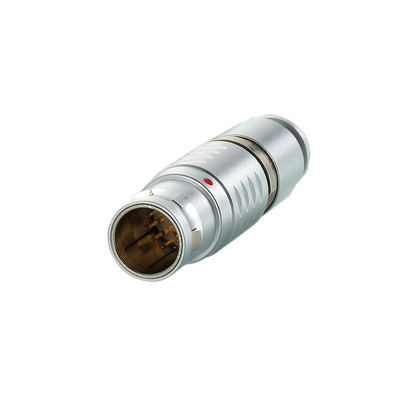

100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female

Name: 100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.2B.316.CLAD
Price: 22.30 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.2B.316.CLAD
MOQ:	1
Price:	negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Pin No.:

2-32pin/Multi Pin

Housing Material:

Brass (chrome Plated) Shell

Endurance (Shell):

5000 Mating Cycles

IP Rating:

IP50

Humidity (max):

<=95% [at 60 Deg C / 140 F]

Configuration:

Brass (gold Plated)

Type:

Solder , Crimp Or Print Contacts

Size:

Contact Material:

Copper Alloy

Packaging Details:

Standard package

Supply Ability:

10000pcs per month

Highlight:

Lemo 2B Series circular connectors

16-pin Lemo B Series connectors

male female Lemo 2B connectors

Product Description

100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female

Description:

Quick push pull self-latching system
Solder, crimp or print contacts
Straight or elbow 90°
Multiple keying options to avoid mismating
Full EMC shielding
Multi-pole 2 ~ 32 contacts
High-density installation to save space
Mating cycles: >5000 times
Humidity: at 60°C, max. up to 95%
Temperature range: -45°C ~ +125°C
Vibration: 10-20,000HZ, 15g
Mechanical shock: 100g, 6ms
Salt fog corrosion: >48h
Protection class: IP50, dust-proof
Cable collet diameter: 2.6mm-7.0mm
Sleeve Color: Black, Red, Blue, White, Yellow, Green

Technical Specifications:

Pins	16Pins
Plug	Straight plug
Locking system	Push-Pull
Size	2B
Mating part	2B.316.CPAC.52L
IP Level	IP50

Electrical Configuration

Cores	16 cores
Contact dia	0.7mm
Contact type	Solder
Rated current	6A
Working voltage	300V
Test voltage	0.95V rms

Materials

Housing material	Brass (chrome plated) shell and collet nut, nickel plated brass larch sleeve and mid pieces
Insulator	PPS

Key

G	A	B	C	D	E	F	J
0°	30°	60°	90°	135°	145°	155°	45°

Why buy compatible connector?

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer, help you save production time

Application:

About Us:

Ebuddy is a manufacturer that:

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly
Can be 100% compatible with original LEMO • FISCHER • ODU • HIROSES• BINDER •Military 38999
Series has Lemo-B, Lemo-K, Lemo-S, Lemo-F, Lemo-E, Hirose-HR10A, Lemo-P, M4, M12, M16, BNC, B680, B423, 38999, 26482
CO, Form A, Form E for customer clearance certificates available for you
CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
All the items can work normally after 5000 times mating
