Push Pull Circular Connectors
Created with Pixso. M18 Push Pull Circular Connectors Lemo ECG 2B 10pin Right Angle Pins Socket

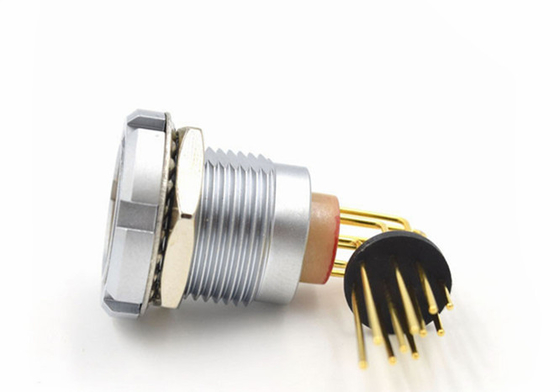

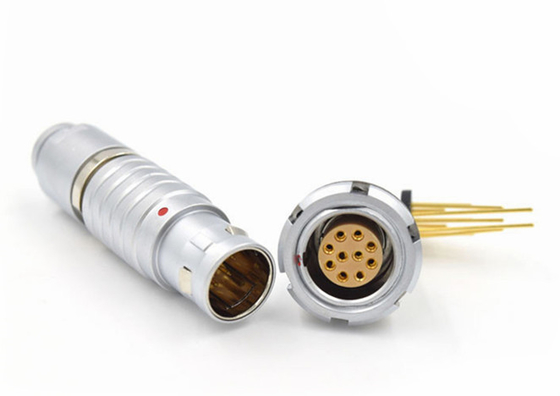

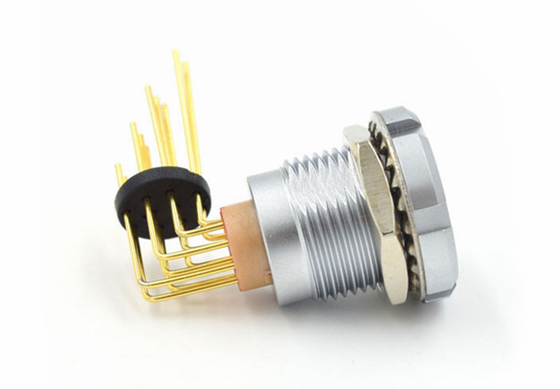

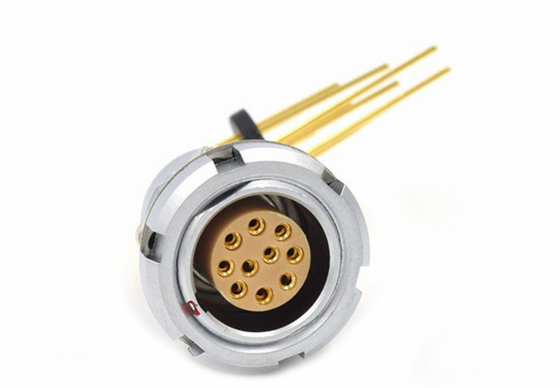

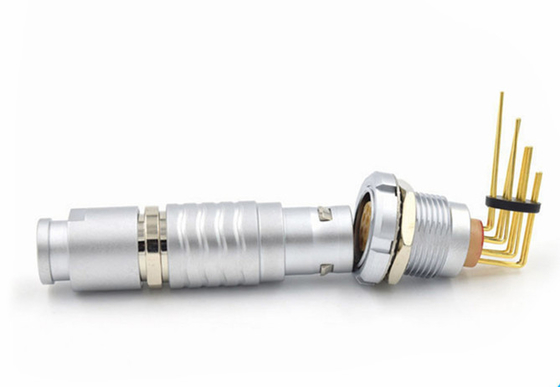

M18 Push Pull Circular Connectors Lemo ECG 2B 10pin Right Angle Pins Socket

Brand Name: Ebuddy
Model Number: ECG.2B.310.CLL
MOQ: 1
Price: Negotiable
Payment Terms: Western Union, T/T,Paypal
Detail Information
Place of Origin:
China
Certification:
CE.ROHS
Contact:
Elbow Printed
Series:
ECG PCB
Size:
Lemo 2B
Max. Matings: 5000:
5000
IP Rating:
IP50
Warranty Time:
1 Year
Packaging Details:
pp pag
Supply Ability:
10000pcs per month
Highlight:

M18 Push Pull Circular Connectors

,

ECG PCB Push Pull Circular Connectors

,

ECG 10 pin Connectors

Product Description
M18 Push Pull Circular Connectors Lemo ECG 2B 10pin Right Angle Pins Socket
High-quality M18 push-pull circular connectors featuring Lemo ECG 2B 10-pin configuration with right angle pins socket design for reliable electrical connections in industrial applications.
Mechanical Specifications
Shell Style/Model: EC*: Fixed receptacle with two nuts and elbow contacts for printed circuit (back panel mounting)
Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Weight: 18.70 g
Configuration: 2B.310 : 10 Low Voltage
Technical Specifications
Contact Type Print (elbow)
Contact Diameter 0.9 mm (0.035in)
R (max) 4.8 mOhm
Vtest (contact-shell) 1300 V (AC), 1840 V (DC)
Vtest (contact-contact) 1450 V (AC), 2050 V (DC)
Endurance (Shell) 5000
Temperature Range -55°C / +250°C
Maximum Humidity ≤95% [at 60°C /140°F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [6 ms]
Size Drawing
M18 Push Pull Circular Connectors Lemo ECG 2B 10pin Right Angle Pins Socket 0
Warranty Policy
All our connectors and cables include a 1-year warranty. During the warranty period:
  • We will repair or replace defective items with new products
  • We cover shipping costs for both sides
Frequently Asked Questions
What about the quality of Lemo M18 ECG 10pin Connectors?
All our products have UL certification and undergo strict quality control testing before shipment.
Can you offer samples to test before normal order?
We provide samples with delivery within 3 working days. For expensive items, please contact us first.
How long is usually your delivery time?
Our standard delivery time is within 10 days after payment confirmation.
Can you provide customization?
We offer customization services. Please provide cable parameters and connector specifications. For professional equipment cables, please include weld definitions.
Some connectors are available with different cables. Which cables shall I choose?
Always choose cables with larger diameters, as they result in less signal attenuation.
How do you solve after sale service?
If you encounter any issues after receiving your order, contact us immediately for a quick and reasonable solution.
