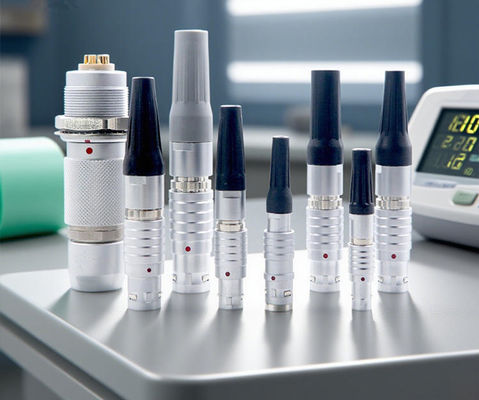

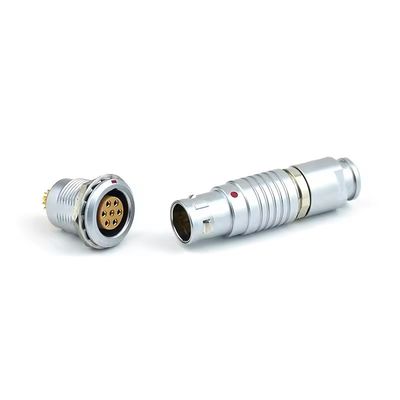

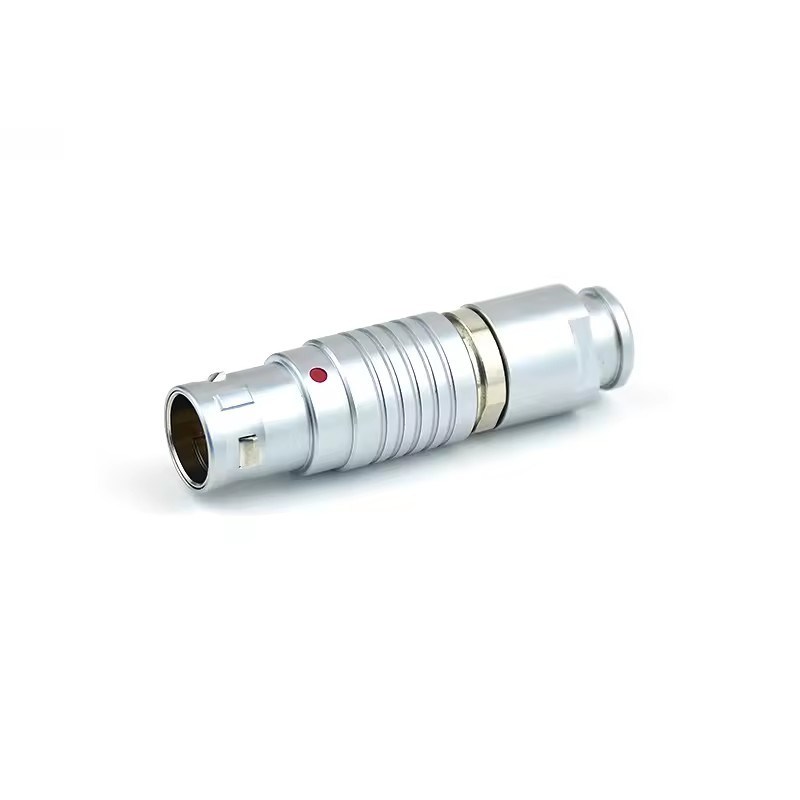

Alternatives Lemo B Series 2 to 12 Pins Male Female Push Pull Self-Lock Connectors Customized Cables Assembly

Name: Alternatives Lemo B Series 2 to 12 Pins Male Female Push Pull Self-Lock Connectors Customized Cables Assembly
Brand: Ebuddy Technology Co.,Limited
SKU: EY-B-MK715
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EY-B-MK715
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Size:

Lemo 00B,0B,1B,2B,3B,4B

Style:

Pull-pull Self Locking

Contacts:

2 To 12 Pins

Gender:

Male And Female

IP Rating:

IP50

Max. Mating:

5000+times

Contact Material:

Copper Gold Plating

Housing Materials:

Brass Chrome Plated

Color:

Black, Silver

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

Lemo B Series push pull connectors

customized Lemo B Series cable assembly

Lemo B Series male female connectors

Product Description

Alternatives Lemo B Series 2 to 12 Pins Male Female Push Pull Self-Lock Connectors Customized Cables Assembly

Alternatives Lemo FGG 2 to 12 Pins Male Female Push Pull Self-Lock Connectors Customized Cables Assembly

Features:

Secure Push-pull Self-locking system.
High density assembly to save space.
Alignment Key and Polarized Keying System to avoid cross-interface.
Colorful plug round nut and socket screw nut for choice, easy for identify.
Can be 100% compatible with original connector.
360 angle screening for full EMC shielding.
Multipole types 2 to 32 contacts.

Cable collet options (2B as Example):

Size	Collet No.	Cable OD	Max
2B	Type	coding
M	42	4.0	3.1
D	52	5.0	4.1
D	62	6.0	5.1
D	72	7.0	6.1
D	82	8.0	7.1
D	92	9.0	8.1
D	99	9.7	9.1

Size and Drawing:

Applications:

Broadcast
Audio/video
Medical
Defense Security
Instrumentation
Transportation
Industry
Energy

About us:

Ebuddy is a manufactuer that:

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
Can be 100% compatible with original LEMO • FISCHER • ODU • HIROSES• BINDER •Military 38999.
Series has Lemo-B, Lemo-K,Lemo-S, Lemo-F,Lemo-E,Hirose-HR10A, Lemo-P, M4, M12,M16, BNC, B680,B423 , 38999, 26482.
CO, Form A, Form E for customer clearance cerificates available for you.
CE, ROHS, ISO:90001-2008, SGS Audited manufacturer.
All the items can work normally after 5000 times mating.

Tags:

9 pin circular connector

multiple wire connectors

10 pin lemo connector

Lemo compatible B series Circula Self Lock Push Pull Connector for Test and Measurement Deivces

Get Best Price

Video

Lemo 00 Lemo B Series Connectors Mininature Right Angle FHG 5 Pin Male Connector FHG.00.305

Get Best Price
