Waterproof Female Plug 7 Pin Circular Connector For Leica Measurement Equipment

Name: Waterproof Female Plug 7 Pin Circular Connector For Leica Measurement Equipment
Brand: Ebuddy Technology Co.,Limited
SKU: HGG.1B.307.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	HGG.1B.307.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Shell Style:

Straight Plug With Cable Collet

Keying:

1 Key (alpha=0)

Humidity (max):

<=95% [at 60 Deg C / 140 F]

Rated Current:

Max. Matings: 5000:

5000

IP Rating:

IP50

Temp (max):

+150 Deg C

Temp (min):

-20 Deg C

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

circular din connector

circular power connector

Leica Measurement Equipment Circular Connector

Product Description

Waterproof Female Plug 7 Pin Circular Connector For Leica Measurement Equipment

Push pull circular connector Lemo cable connector 6pin male FGG 1B 306

Product Specifications

Size: 1B

Series: FGG*: Straight plug

Keying: 1key/2key, 0°,45°

Housing Material: Brass chrome plated

Insert: 1B.306: 6 Low Voltage

Configuration: Brass (gold plated)

Insulator: P:PPS

Specifications: Low Voltage

Contact Type: Solder/printed circuit (straight or elbow)

Max. Matings: 5000

Contact Dia: 0.7 mm

Bucket Dia: 0.8 mm

Max. Solid Conductor: 0.34 mm² (AWG 22)

Max. Stranded Conductor: 0.34 mm² (AWG 22)

R (max): 6.1 mOhm

Vtest (AC): 1600 V

Rated Current: 7 A

Cable Collet Options

Collet No.	Cable OD Type	Coding	Max (mm)	Min (mm)
1B	M	31	3	2.6
1B	D	42	4.0	3.1
1B	D	52	5.0	4.1
1B	D	62	6.0	5.1
1B	D	72	7.0	6.1

Benefits of Compatible Connectors

100% compatible with Lemo connectors
Save at least 200% on costs compared to original parts
Cable assembly services available to reduce production time
Fast delivery within 3-7 days

Frequently Asked Questions

How to choose the right connector?

Please provide the Lemo connector model number or specify the connector size and pin count required.

What payment methods do you accept?

We accept PayPal, TT (Telegraphic Transfer), Western Union, and other payment terms.

How do you ship goods?

We ship via DHL, FedEx, UPS, or you can choose your preferred express carrier.

Are EBUDDY connectors compatible with existing Lemo connectors?

Yes, our connectors are fully compatible with Lemo connectors and can be used as direct replacements.

What is the delivery time for EBUDDY products?

Typically 5-8 days after payment confirmation.

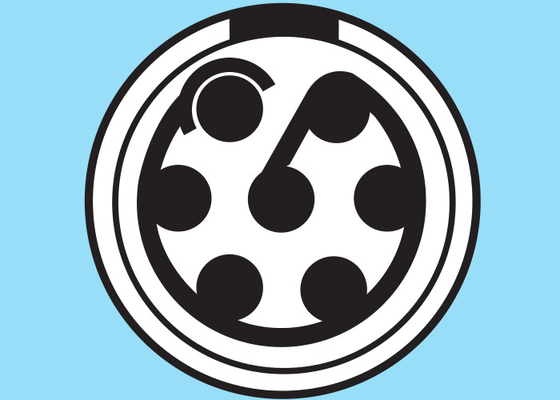

Lemo Connector 1B 7-Pin Technical Drawings
