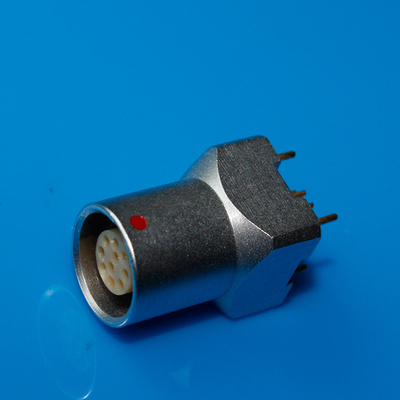

Lemo Right Angle Receptacle EZG 0B 1B 2B Female Print PCB Connector For Rear Panel Mounting

Name: Lemo Right Angle Receptacle EZG 0B 1B 2B Female Print PCB Connector For Rear Panel Mounting
Brand: Ebuddy
SKU: DZG.1B.310.CLAD
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (189 reviews)

Large Image : Lemo Right Angle Receptacle EZG 0B 1B 2B Female Print PCB Connector For Rear Panel Mounting

Product Details:

Place of Origin:	China
Brand Name:	Ebuddy
Certification:	CE.ROHS
Model Number:	DZG.1B.310.CLAD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	pp pag
Payment Terms:	Western Union, T/T，Paypal
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Housing Material:	Brass Chrome Plated	Shell Style/Model:	Straight Receptacle For Printed Circuit
Pins:	2pin 3pin 4pin 5pin 6pin 7pin 8pin 10pin 12pin 16pin	Keying:	1key
Termination Type:	Female Print PCB	Application:	PCB Mounting
High Light:	pcb mount circular connector , right angle pcb connector , 2B Female Print PCB Connector

Lemo right angle receptacle EZG 0B 1B 2B female print PCB connector for rear panel mounting

Technical specifications:

Termination type: Female print PCB
Matching parts : FGG.1B.310.CLAD42
Shell Style/Model:EZ*: Straight receptacle for printed circuit
Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Contact Type: Print (straight)
Max. Matings: 5000
Contact Dia.: 0.5 mm (0.02in)
R (max): 8.7 mOhm
Vtest (contact-shell): 1500 V (AC), 2120 V (DC)
Vtest (contact-contact): 900 V (AC), 1270 V (DC)

PCB Board drilling figure

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

Why you need buy compatible connector?

100% compatible lemo connector,
Help you save at least 30% cost
Cable assembly offer,help you save production time.

FAQ

Medical
Defense Security
Instrumentation
Transportation
Industry
Energy
Broadcast
Audio/video

Size and drawing:

Lemo Right Angle Receptacle EZG 0B 1B 2B Female Print PCB Connector For Rear Panel Mounting 0

Lemo Right Angle Receptacle EZG 0B 1B 2B Female Print PCB Connector For Rear Panel Mounting 1
