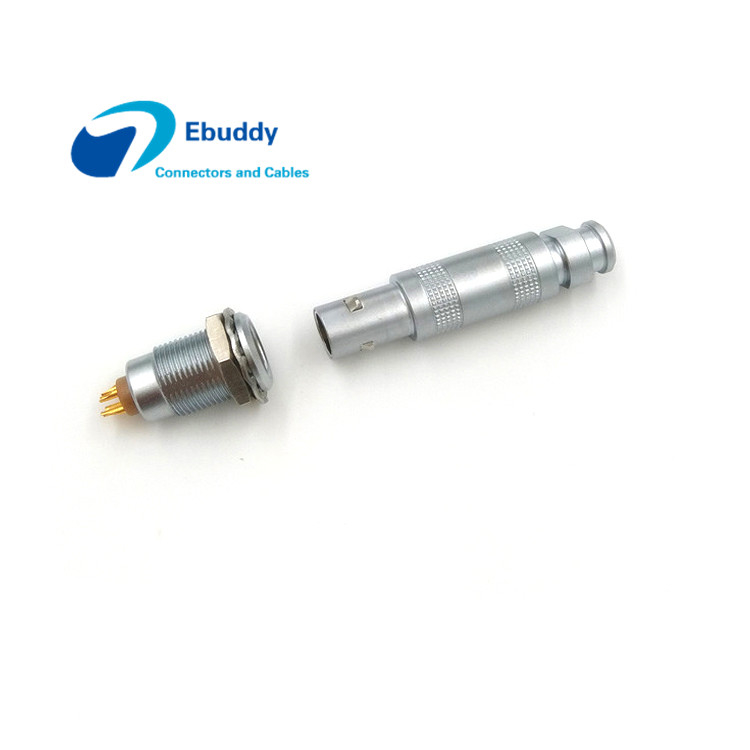

Lemo Alternative Half Moon Lemo S Series 0S Connector 4 Pin Male Plug FFA.0S.304.CLAC

Name: Lemo Alternative Half Moon Lemo S Series 0S Connector 4 Pin Male Plug FFA.0S.304.CLAC
Brand: Ebuddy Technology Co.,Limited
SKU: EY-PB-45
Price: 9.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EY-PB-45
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Termination Type:

Male Solder

Matching Parts E:

ERA.0S.304.CLL

Rated Current:

7 Amps

IP Rating:

Climatical Category:

50/175/21

Temp (min / Max):

-55°C / +250°C

Packaging Details:

giftbox

Supply Ability:

900000pcs per month

Highlight:

lemo connector assembly

lemo push pull connector

Product Description

Lemo Alternative Half Moon Lemo S Series 0S Connector 4 Pin Male Plug FFA.0S.304.CLAC

High-quality Lemo alternative Half Moon S series 0S 4-pin male plug connector designed for reliable performance in industrial applications.

Technical Specifications

Specification	Details
Shell Style/Model	FFA*: Straight plug, cable collet and nut for fitting a bend relief
Keying	Hermaphroditic keying ("half moon" insert), plug has male pin 1
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration	0S.304 : 4 Low Voltage
Contact Type	Solder
Max. Matings	5000
Contact Diameter	0.7 mm (0.028in)
Bucket Diameter	0.6 mm (0.024in)
Max. Solid Conductor	0.25 mm² (AWG 24)
Max. Stranded Conductor	0.14 mm² (AWG 26)
R (max)	6.1 mOhm
Vtest	1060 V (AC), 1500 V (DC)

Our Service Commitment

100% quality control testing on all products
12-month warranty with free repair for any defects during warranty period
Fast delivery: approximately 3 days for samples, 30 days for quantity orders
Excellent after-sales service and technical support
OEM/ODM services welcome - experienced with custom requirements

Dimensions and Drawings
