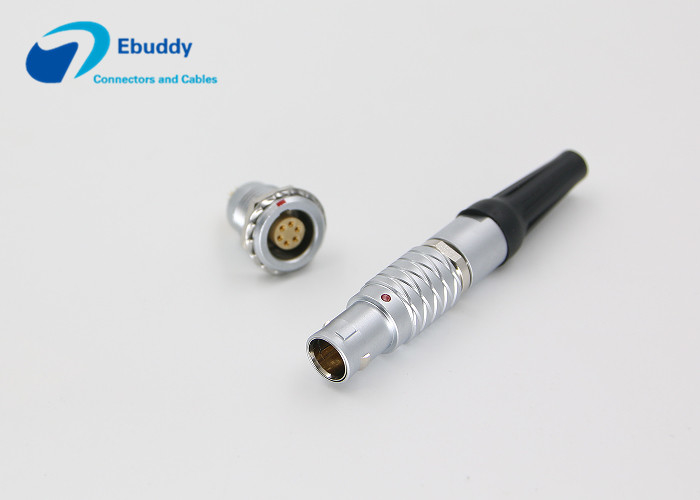

4 Pin Lemo Cable Connector FGG 0B For Red Epic Camera Power Supply

4 Pin Lemo Cable Connector FGG 0B For Red Epic Camera Power Supply

  • 4 Pin Lemo Cable Connector FGG 0B For Red Epic Camera Power Supply
  • 4 Pin Lemo Cable Connector FGG 0B For Red Epic Camera Power Supply
4 Pin Lemo Cable Connector FGG 0B For Red Epic Camera Power Supply
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.0B.304.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Shell Style: Straight Plug With Cable Collet Keying: 1 Key (alpha=0)
Housing Material: Brass (chrome Plated) Shell Rated Current: 7 A
Max. Matings: 5000: 5000 IP Rating: IP50
R (max): 6.1 MOhm Configuration: Brass (gold Plated)
High Light:

lemo compatible connector

,

soldering cable connectors



Lemo cable connector 4pin 0B size FGG 304 for Red Epic camera power supply



Description:
  • Smart push-pull self-latching system;
  • Multicore types with 2 to 26 pins;
  • Solder or PCB contacts (straight or elbow);
  • High-density installation for space-saving;
  • Different kinds of keying options to avoid mismatching;
  • The right direction shielding effect, anti-electromagnetic interference.



Technical specifications:



PERFORMANCE DETAILS
Insert 0B.304 :4Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 0.7 mm
Bucket Dia 0.8 mm
Max. Solid Conductor 0.34 mm^2 (AWG 22)
Max. Stranded Conductor 0.34 mm^2 (AWG 22)
R (max) 6.1mOhm
Vtest (AC) 2000 V
Rated Current 7 A
OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50

Why you need buy compatible connector?



1. 100% compatible lemo connector,

2. Help you save at least 30% cost

3. Cable assembly offer,help you save production time.





Application :



  • Medical
  • Defense Security
  • Instrumentation
  • Transportation
  • Industry
  • Energy
  • Broadcast
  • Audio/video



Why choose Ebuddy



  • Complete compatible with lemo/odu/fischer/hirose connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first

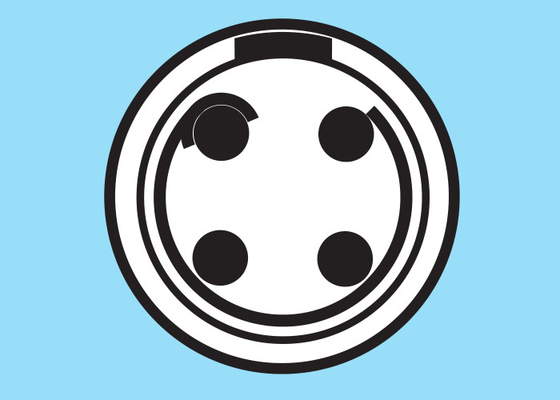

Size and drawing:



4 Pin Lemo Cable Connector FGG 0B For Red Epic Camera Power Supply 0

4 Pin Lemo Cable Connector FGG 0B For Red Epic Camera Power Supply 1
