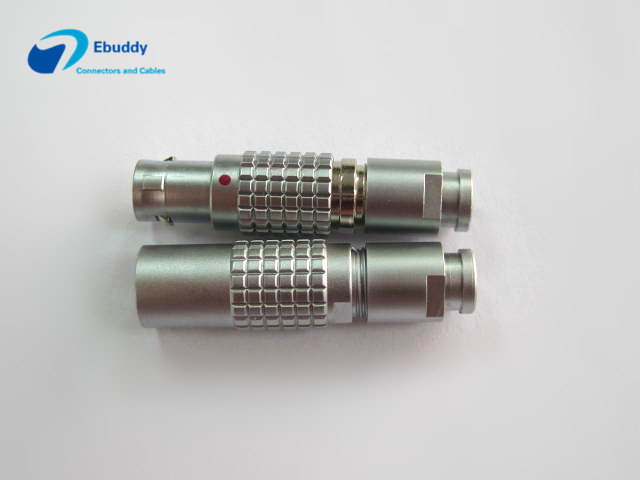

Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors

Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors

  • Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors
  • Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors
Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: FGG.1B.303.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Shell Style: Straight Plug With Cable Collet Keying: 1 Key (alpha=0)
Housing Material: Brass (chrome Plated) Shell Rated Current: 15A
Max. Matings: 5000: 5000 IP Rating: IP50
R (max): 3.6 MOhm Configuration: Brass (gold Plated)
High Light:

lemo compatible connector

,

soldering cable connectors



Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors



Description:



  •  subtitute B-series connector, cable to cable connector, free socket ,inline connector
  •  can be wth different degree , such us 30, 45, 60, 90, 135
  •  can plated with white or black chrome



Cable collet size for your option:



  Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1



Technical specifications:



PERFORMANCE DETAILS

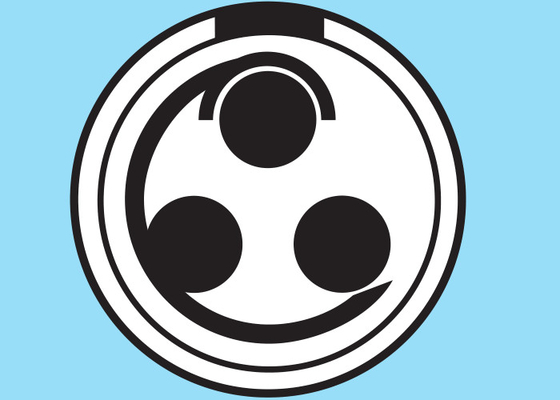

Insert 1B.303 :3Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 1.3 mm
Bucket Dia1 mm
Max. Solid Conductor 0.5 mm^2 (AWG 20)
Max. Stranded Conductor 0.5 mm^2 (AWG 20)
R (max) 3.6mOhm
Vtest (AC) 1600 V
Rated Current 12 A
OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50

Why choose Ebuddy



1.Complete compatible with lemo/odu/fischer/hirose connector with lower cost

2.ROHS,ISO9001:2008,UL standard

3.Short delivery time:7-10 days normally

4.Factory can produce 5000 set/week

5.Samples offer to check first



Size and drawing

Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors 0

Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors 1
