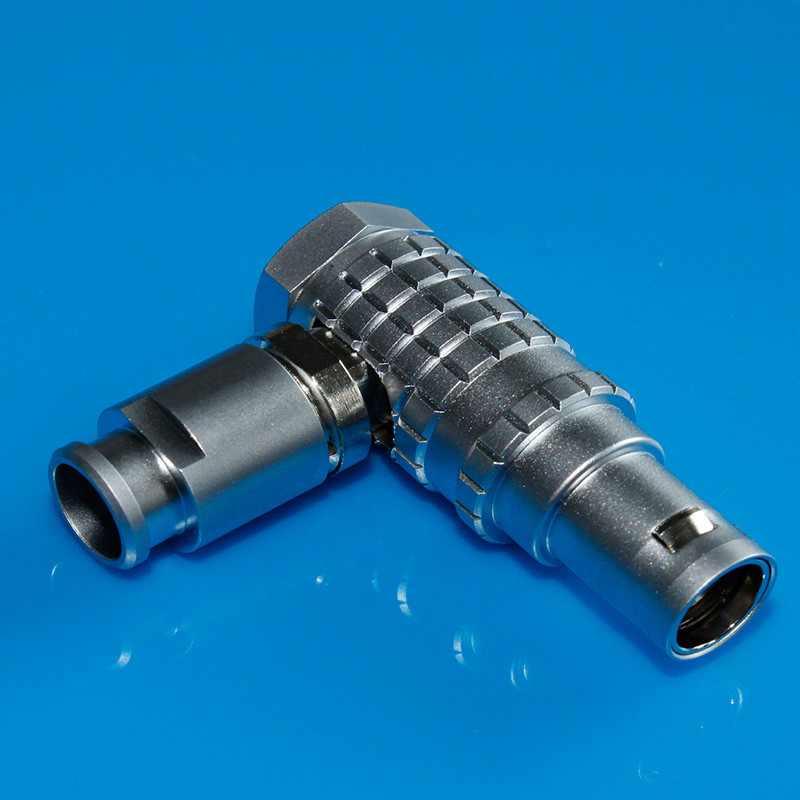

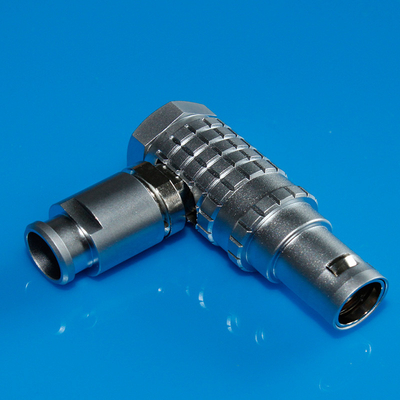

Lemo alternative FHG right angle connector FHG.1B.310 90 degree cable connector for GeoMax Zenith 15/25 GNSS receiver

Lemo alternative FHG right angle connector FHG.1B.310 90 degree cable connector for GeoMax Zenith 15/25 GNSS receiver

  • Lemo alternative FHG right angle connector FHG.1B.310 90 degree cable connector for GeoMax Zenith 15/25 GNSS receiver
Lemo alternative FHG right angle connector FHG.1B.310 90 degree cable connector for GeoMax Zenith 15/25 GNSS receiver
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: FHG.1B.310
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Style: Right Angle Pin No:: 10pin
Shock Resistance: 100g.6ms Application: Survey
Housing Material: Brass Chrome Plated Configuration: Brass (gold Plated)
High Light:

lemo compatible connector

,

7 pin cable connectors



Lemo alternative FHG right angle connector FHG.1B.310 90 degree cable connector for GeoMax Zenith 15/25 GNSS receiver



Features:



  • Lemo Alternative FHG 10pin connectors
  • Application: GeoMax Zenith 15/25 GNSS receiver
  • right angle 90 degree style, reduce cable damage when using
  • cable assembly service is welcome
  • Warranty time: 1year warranty, any problems in warranty time, we will fix free or replace new one



Our Service:
  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.



Cable collet:





  Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1







Cable assembly service





We promise all our cable assembly:

  • Professional engineer evaluate your needs
  • 100% testing before shipping
  • Small quantity are welcome
  • Overmold is available

MOQ: 1pc is available



Process:

before do the cable assembly, there are some information need confirm first, like the cable connector, length,OD,wire diagram:

  • Cable application(we need to know it is for power or signal, then we can use suitable cable for you)
  • Cable length, cable OD
  • Both sides connectors (for the connector, please advise the model number or specification details)
  • Wire connection way (Our engineer will work out a connection diagram including all cable details for your confirmtion)



Size and drawing:



Lemo alternative FHG right angle connector FHG.1B.310 90 degree cable connector for GeoMax Zenith 15/25 GNSS receiver 0



Lemo alternative FHG right angle connector FHG.1B.310 90 degree cable connector for GeoMax Zenith 15/25 GNSS receiver 1
