PAG 5 Amp Plastic Circular Connectors , Lemo Compatible Low Voltage Connectors

Name: PAG 5 Amp Plastic Circular Connectors , Lemo Compatible Low Voltage Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: PAG.M0.7GL.AC
Price: 22.30 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	PAG.M0.7GL.AC
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Termination Type:

Male Solder

Shell Style/Model:

PA*: Straight Plug With Cable Collet

Configuration:

1P.M07 : 7 Low Voltage

Rated Current:

Max. Matings:

2000

R (max):

6.5 MOhm

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

circular plastic connectors

lemo redel connectors

Product Description

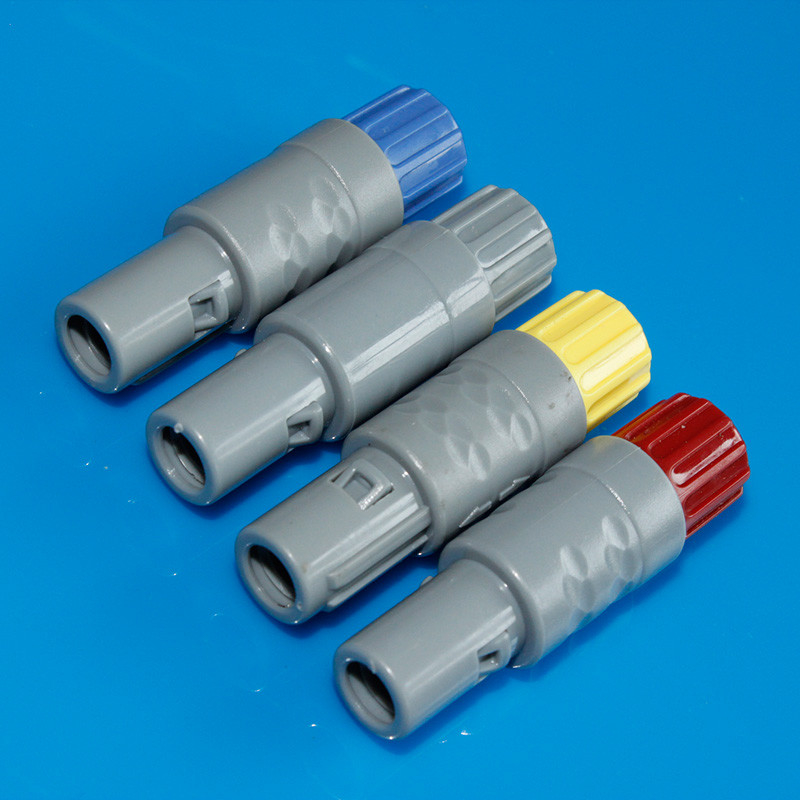

7pin medical plug Lemo compatible plastic circular connectors PAG.M0.7GL.AC

Technical Details:

Shell Style/Model: PA*: Straight plug with cable collet
Keying: 1 key (alpha=0; Plug: male contact; Receptacle: female contact)
Configuration:1P.M07 : 7 Low Voltage
Rated Current:5 Amps
Contact Type: Solder
Max. Matings: 2000
Contact Dia.: 0.7 mm (0.0275in)
Bucket Dia.: 0.6 mm (0.024in)
Max. Solid Conductor: 0.14 mm^2 (AWG 26)
Max. Stranded Conductor: 0.14 mm^2 (AWG 26)
R (max): 6.5 mOhm
Test voltage (kV rms) Contact-contact: 1.05
Air clearance min. (mm) or Creepage distance min. (mm): 0.85

Applications

P series connectors are plastic Push-Pull connectors. They are widely used in electronic equipments, instrument & meters, LED display screen, and especially in medical devices, such as

patient monitor
respirator
anesthetic machine
color Doppler ultrasound
BP monitor
Infrared therapeutic instument
electrophysiology
TCD
electric knife
endoscopy
defibrillator
dental equipment
electric shock generator
MRI, etc.

How to do cable assembly youself

PAG 5 Amp Plastic Circular Connectors , Lemo Compatible Low Voltage Connectors 0

Size and Drawing:

PAG 5 Amp Plastic Circular Connectors , Lemo Compatible Low Voltage Connectors 1

PAG 5 Amp Plastic Circular Connectors , Lemo Compatible Low Voltage Connectors 2
