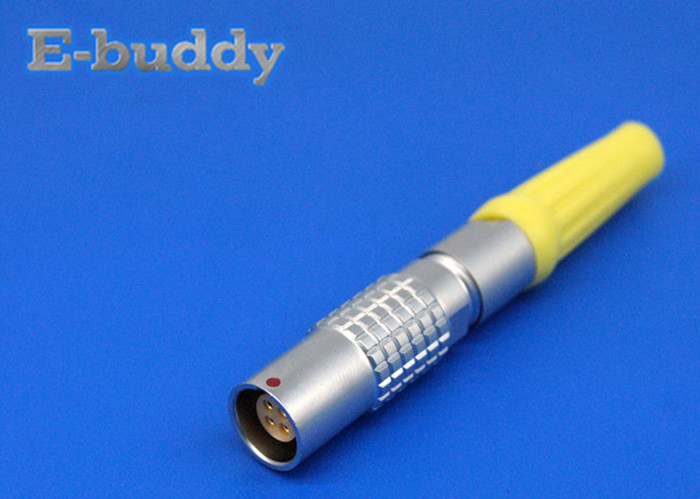

PHG Lemo compatible connector Push pull circular connector PHG 1B 2pin -- 16pin free socket

PHG Lemo compatible connector Push pull circular connector PHG 1B 2pin -- 16pin free socket

  • PHG Lemo compatible connector Push pull circular connector PHG 1B 2pin -- 16pin free socket
PHG Lemo compatible connector Push pull circular connector PHG 1B 2pin -- 16pin free socket
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: PHG.1B.316.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T，Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Application: Cable Connecting Specifications: Low Voltage
Endurance (Shell): 5000 Mating Cycles Shell Style: Female Plug
IP Rating: IP50 Pin No: 2-32pin/Multi Pin
High Light:

industrial circular connectors

,

multi pin electrical connectors



PHG Lemo compatible connector Push pull circular connector PHG 1B 2pin -- 16pin cable connect connector



Description:
  • Lemo PHG 16pin free socket
  • Good quality with best competitive price
  • Pins: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin 14pin 16pin 19pin 26pin
  • Custom cable assembly service welcome
  • 100% compatible with Lemo, or we will refund
  • Sleeve color for your option: Black, Red, Blue, White, Yellow, Green



Contacts No.:
  • · 00B sizes: 2, 3 and 4
  • · 0B sizes: 2 3 4 5 6 7 and 9
  • · 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 ,14 , 16pin
  • · 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32



Cable collet size:



　 Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1



Size and Drawing:



PHG Lemo compatible connector Push pull circular connector PHG 1B 2pin -- 16pin free socket 0



PHG Lemo compatible connector Push pull circular connector PHG 1B 2pin -- 16pin free socket 1







Tag:

industrial circular connectors,

multi pin electrical connectors,

micro circular connectors
