PHG 3B 24pin Circular Wire Connectors Lemo Replacement For Extension Cable PHG.3B.324

Name: PHG 3B 24pin Circular Wire Connectors Lemo Replacement For Extension Cable PHG.3B.324
Brand: Ebuddy Technology Co.,Limited
SKU: PHG.3B.324
Price: 6.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	PHG.3B.324
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

PHG

Size:

Lemo 3B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

PHG 3B circular wire connectors

Lemo Replacement circular wire connectors

Product Description

PHG 3B 24pin Circular Wire Connectors

Lemo replacement PHG 3B 24pin female free socket and 24pin solder female plug for extension cable applications.

Product Specifications

Shell Style/Model	EG*: Fixed receptacle, nut fixing
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

Performance Details

Insert	2B.324 : 24 Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Female solder
Max. Matings	5000
Contact Dia	0.7 mm (0.028in)
Bucket Dia	0.8 mm (0.031in)
Max. Solid Conductor	0.34 mm² (AWG 22)
Max. Stranded Conductor	0.34 mm² (AWG 22)
R (max)	6.1mOhm
Vtest (AC)	1100 V
Rated Current	4A

Size Drawing

Warranty Policy

All our connectors and cables include a 1-year warranty. Any problems during the warranty period:

We will repair or replace with a new unit
We cover shipping costs for both sides

Why Choose Ebuddy

Fully compatible with Lemo/ODU/Fischer connectors at lower cost
ROHS, ISO9001:2008, UL standard certified
Short delivery time: 7-10 days normally
Factory production capacity: 5000 sets/week
Samples available for quality verification

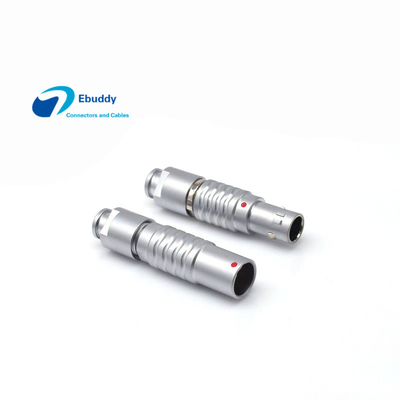

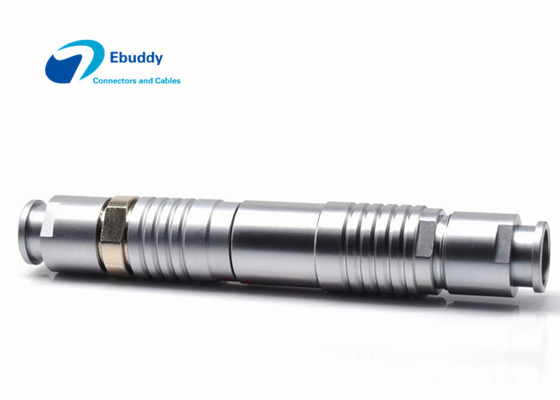

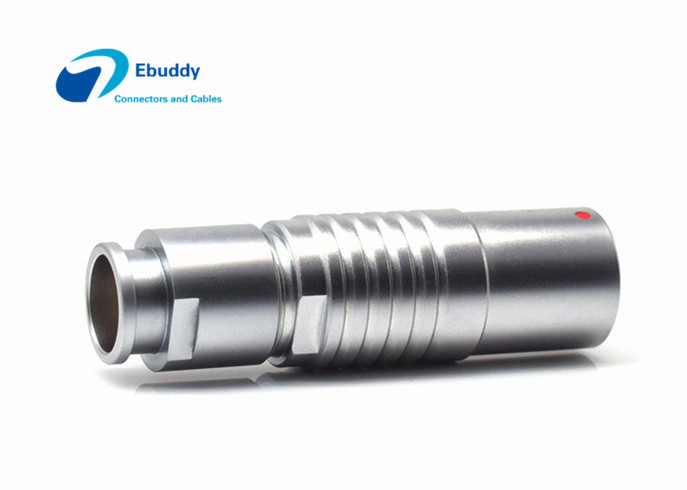

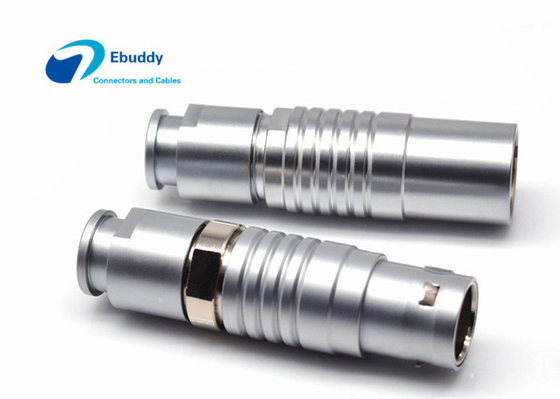

Product Images
