Push Pull Circular Connectors
Created with Pixso. Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle

Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle

Brand Name: Ebuddy
Model Number: HEG.0B.302
MOQ: 1
Price: Negotiable
Payment Terms: Western Union, T/T,Paypal
Detail Information
Place of Origin:
China
Certification:
CE.ROHS
Insulator:
PPS
Series:
HEG PCB
Size:
Lemo 0B
Shock Resistance:
100g.6ms
Max. Matings: 5000:
5000
IP Rating:
IP50
Resiatance To Vibration:
10-20000Hz, 15g
Warranty Time:
1 Year
Packaging Details:
pp pag
Supply Ability:
10000pcs per month
Highlight:

Vacuumtight Back Panel Push Pull Connectors

,

PCB Female Socket Push Pull Connectors

,

HEG Push Pull Circular Connectors

Product Description
Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle
High-performance vacuum-tight back panel PCB female socket Lemo push pull HEG receptacle connectors designed for reliable electrical connections in demanding industrial applications.
Product Specifications
Shell Style/Model HE*: Fixed receptacle, nut fixing, watertight or vacuum-tight (back panel mounting)
Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Performance Details
Insert
0B.302 : 2 Low Voltage
Configuration
Brass (gold plated)
Insulator
P:PPS
Specifications
Low Voltage
Contact Type
Female solder
Max. Matings
5000
Contact Dia
0.9 mm (0.035in)
Bucket Dia
1.0 mm (0.039in)
Max. Solid Conductor
0.56 mm² (AWG 20)
Max. Stranded Conductor
0.56 mm² (AWG 20)
R (max)
4.8mOhm
Vtest (AC)
1300 V
Rated Current
10A
Size Drawing
Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 0
Warranty Policy
All our connectors and cables come with a 1-year warranty. During this period:
  • We will repair or replace any defective products with new units
  • We cover shipping costs for both sides
Why Choose Ebuddy
Compatibility & Cost
Fully compatible with Lemo/ODU/Fischer connectors at lower cost
Certifications
ROHS, ISO9001:2008, UL standard compliant
Delivery Time
Short lead time: 7-10 days typically
Production Capacity
Factory can produce 5000 sets per week
Samples
Samples available for quality verification

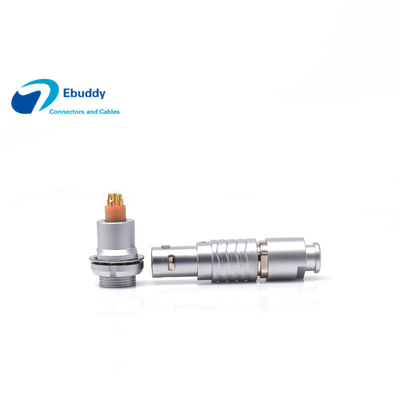

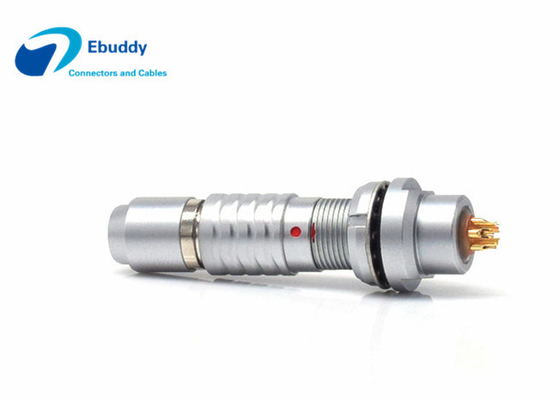

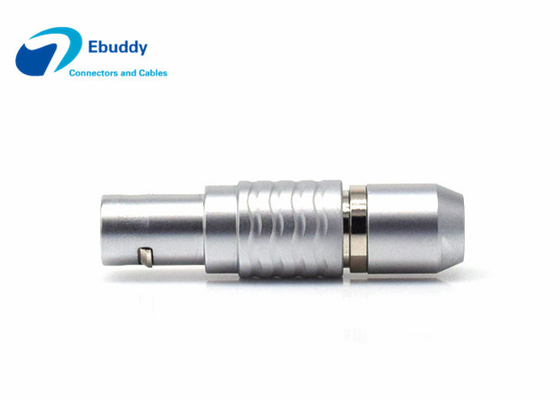

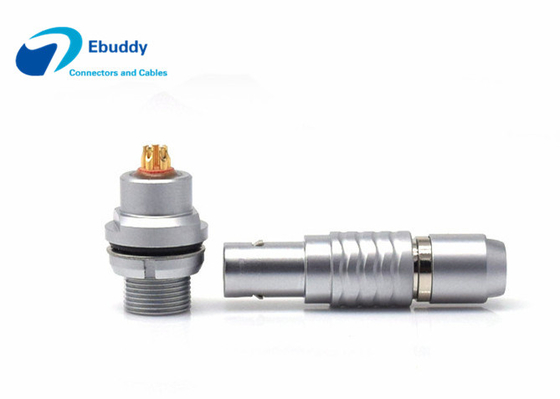

Product Images
Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 1 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 2 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 3 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 4 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 5 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 6 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 7 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 8 Vacuumtight Back Panel PCB Female Socket Lemo Push Pull Connectors HEG Receptacle 9
