Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Push Pull Circular Connectors
Created with Pixso. Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305
Name
  • Name
  • Name
  • Name
  • Name
  • Name

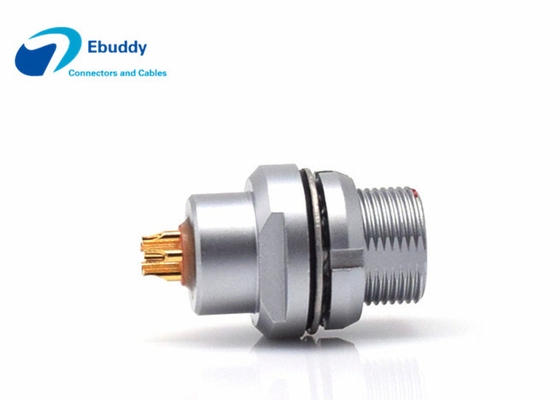

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305

Brand Name: Ebuddy
Model Number: HEG.0B.305
MOQ: 1
Price: Negotiable
Payment Terms: Western Union, T/T，Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE.ROHS
Insulator:
PPS
Series:
HEG Watertight
Size:
Lemo 0B
Shock Resistance:
100g.6ms
Max. Matings: 5000:
5000
IP Rating:
IP50
Resiatance To Vibration:
10-20000Hz, 15g
Warranty Time:
1 Year
Packaging Details:
pp pag
Supply Ability:
10000pcs per month
Highlight:

Circular Watertight Cable Connector

,

Lemo HEG Watertight Cable Connector

,

Vacuumtight Panel Socket Circular Connectors

Product Description

Circular watertight cable connector Lemo HEG vacuumtight panel socket HEG.0B.305



Description:



  • Contact Type: Solder
  • Contact Dia.: 0.7 mm (0.028in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Solid Conductor: 0.34 mm^2 (AWG 22)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 6.1 mOhm
  • Vtest (contact-shell): 700 V (AC), 1000 V (DC)
  • Vtest (contact-contact): 1000 V (AC), 1400 V (DC)

Others :

  • Endurance (Shell): 5000
  • Temp (min / max): -20°C / +100°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Climatical Category: 20/80/21
  • Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • Salt Spray Corrosion: >1000 hr
  • Pressure: 60 bars







Size Drawing:



Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 0


Warranty Policy: 1year warranty time​:




For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

1. we will fix it or replace new brand one
2. We will bear both sides shipping cost.



Why choose Ebuddy:



  • Complete compatible with lemo/odu/fischer/ connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first

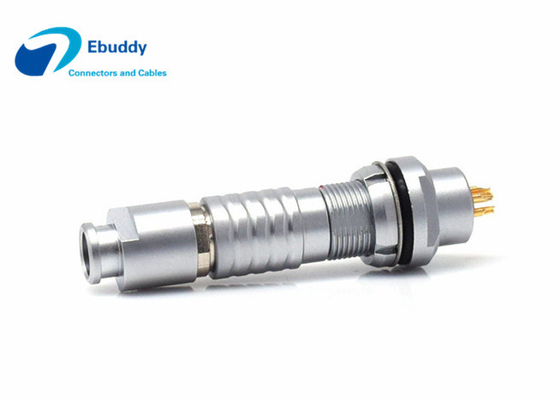

 Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 1

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 2

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 3

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 4

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 5

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 6

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 7

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 8



Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 9

Circular Watertight Cable Connector Lemo HEG Vacuumtight Panel Socket HEG.0B.305 10
