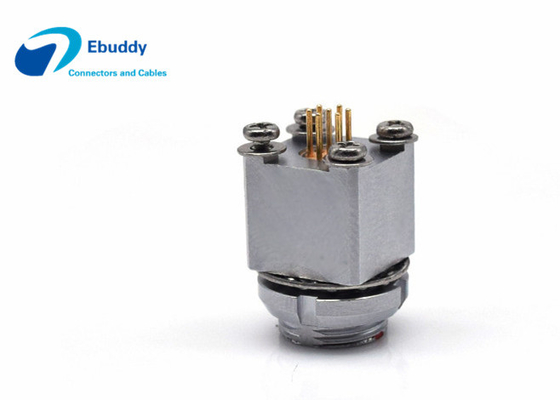

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle

Name: Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle
Brand: Ebuddy Technology Co.,Limited
SKU: EYG.0B.307
Price: 6.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EYG.0B.307
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

EYG PCB

Size:

Lemo 0B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

7pin Back Panel Mount Circular Connector

Lemo Equivalent Panel Mount Circular Connector

EYG Push Pull Circular Connectors

Product Description

Back panel mount circular connector Lemo equilalent EYG 7pin femlae receptacle EYG.0B.307

Description:

Shell Style/Model	EY*: Fixed receptacle for printed circuit, harpoon fixing (back panel mounting)
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Variant

PERFORMANCE DETAILS
Insert	0B.307 : 7 Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Female print PCB - harpoon
Max. Matings	5000
Contact Dia	0.5 mm
Bucket Dia	0.45 mm
Max. Solid Conductor	0.09 mm^2 (AWG 28)
Max. Stranded Conductor	0.09 mm^2 (AWG 28)
R (max)	8.7mOhm
Vtest (AC)	700 V
Rated Current	2.5A

Size Drawing:

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 0

Warranty Policy: 1year warranty time:

For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

1. we will fix it or replace new brand one
2. We will bear both sides shipping cost.

Why choose Ebuddy:

Complete compatible with lemo/odu/fischer/ connector with lower cost
ROHS,ISO9001:2008,UL standard
Short delivery time:7-10 days normally
Factory can produce 5000 set/week
Samples offer to check first

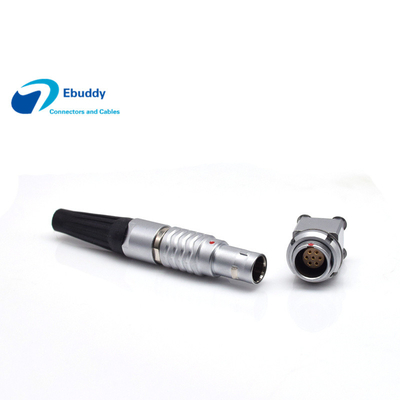

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 1

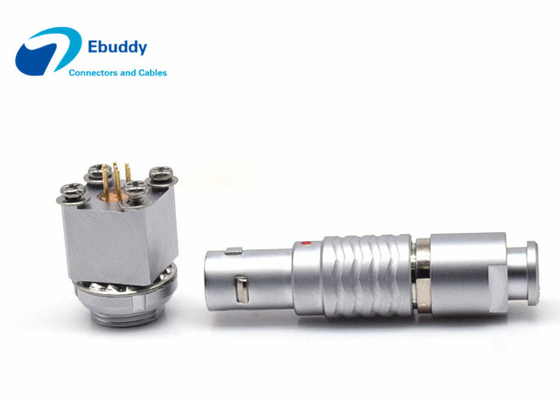

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 2

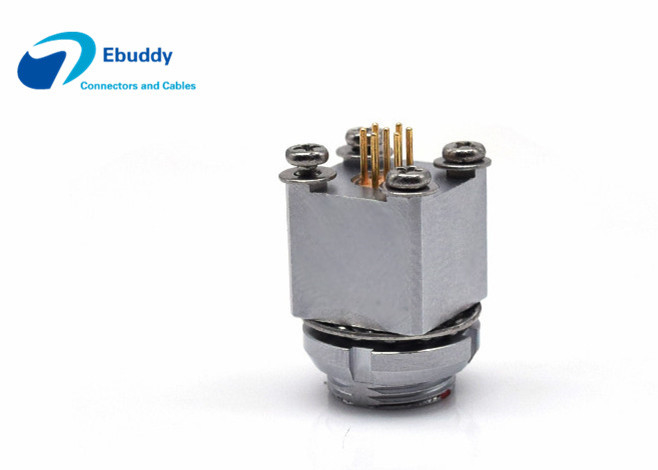

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 3

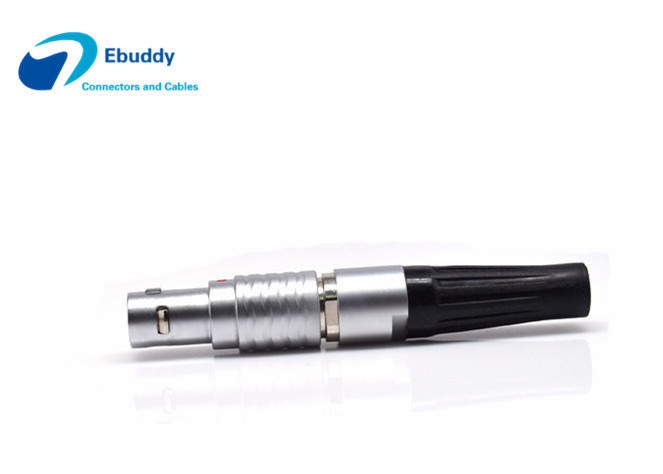

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 4

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 5

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 6

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 7

Back Panel Mount Circular Connector Lemo Equivalent EYG 7 pin Female Receptacle 8
